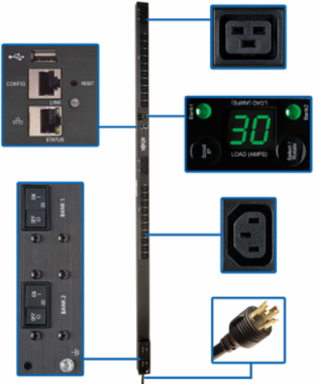

Tripp Lite PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
Tripp Lite PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
- MPN: PDUMV30HVNETLX
- UPC: 037332202550
- PPN: TRP-PDUMV30HVNETLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2153.30/ EA
Description
Cost-effective 5/5.8kW PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in network interface helps monitor load levels to prevent overloads that cause downtime.
Features
- 5/5.8kW 208/240V 30A switched PDU
- 24 individually controllable outlets—20 C13, 4 C19
- Built-in LX Platform interface for remote access
- Digital ammeter for on-site load monitoring in real time
- NEMA L6-30P input with 10 ft. AC power cord
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes Network-Grade Single-Phase Power
- 24 Switched Outlets Distribute AC Power
- Digital Ammeter
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

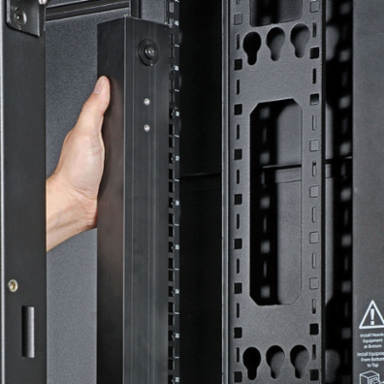

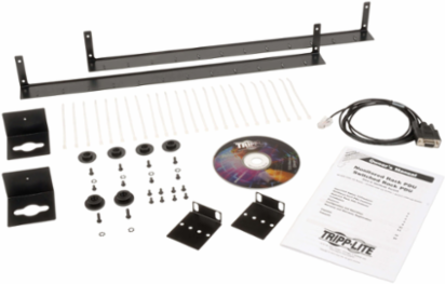

- 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 5.00 x 6.20 x 73.00
- Unit Dimensions (hwd / in.)
- 70 x 2.19 x 2.65
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)15.60
Unit Weight (lbs.)11.5
User Interface, Alerts & Controls

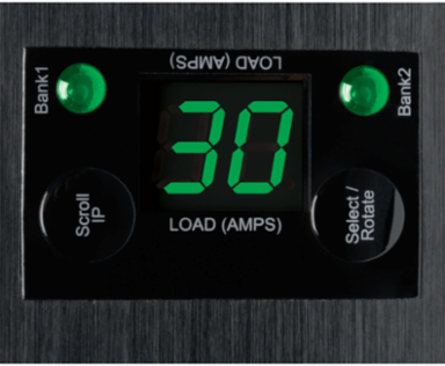

- Front Panel LCD Display
- Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)
- Switches
- Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Front Panel LEDs24 power availability LEDs confirm power off/on status for each built-in outlet; Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type

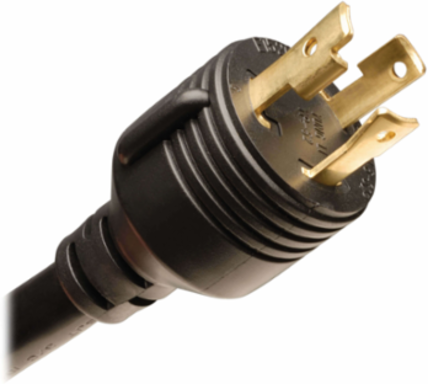

- NEMA L6-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

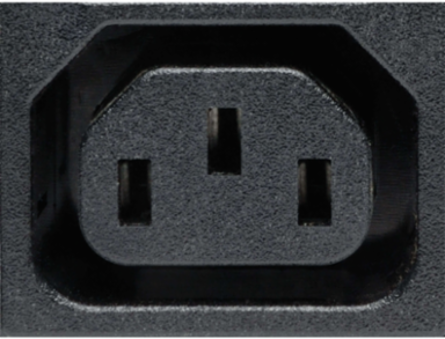

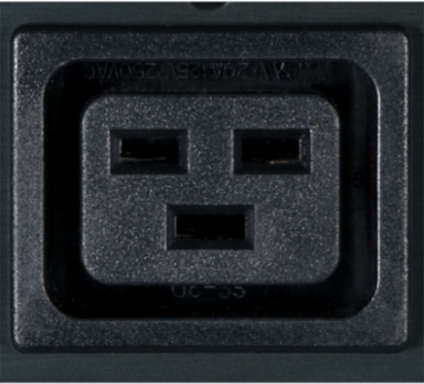

- (20) C13; (4) C19
- Overload Protection

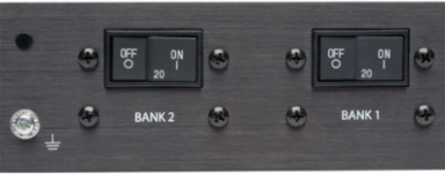

- Two 20A breakers protect 12 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- Network Monitoring Port

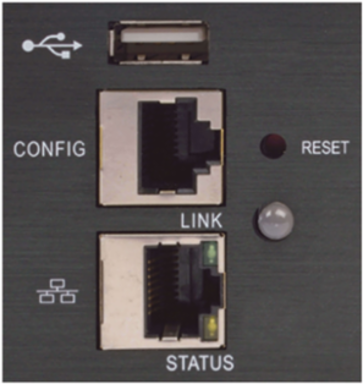

- RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative Humidity0-95% non-condensing
Overview
- UPC Code
- 037332202550
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
