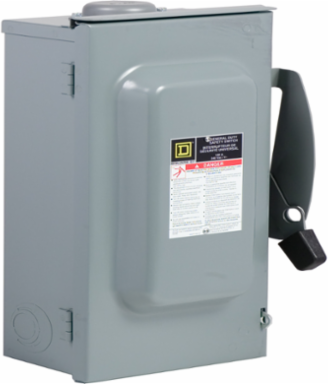

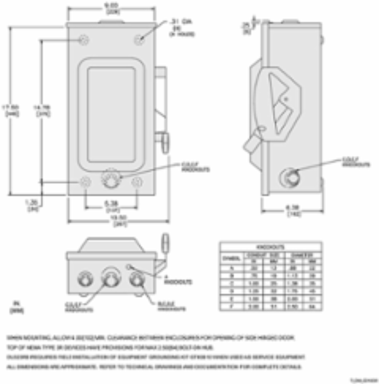

Square D CD223NRB General Duty Safety Switch 100A, 2-Pole, NEMA 3R, 240V AC
- MPN: CD223NRB
- UPC: 785901964360
- PPN: SCH-CD223NRB
CAD
$403.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 100A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 3R galvannealed steel with bolt on provisions. This switch complies with CSA C22.2.
Features
- Engineered with a rugged, corrosion-resistant galvannealed steel chassis and a NEMA 3R weather rating, this enclosure is purpose-built to withstand severe rain, sleet, and external ice formation. It provides ultimate outdoor protection for commercial air conditioning units, heat pumps, and outdoor agricultural equipment, preventing moisture entry and tracking failures.
- Shipped with a built-in solid neutral assembly, this 3-wire, 2-pole safety switch eliminates the hassle and extra cost of sourcing separate neutral kits in the field. This integrated configuration allows residential and commercial electricians to safely use the unit as service entrance equipment right out of the box, drastically reducing installation steps.
- Built to accommodate standard cartridge fuses, this fusible switch can achieve a high Short Circuit Current Rating (SCCR) of up to 100,000 Amps when paired with Class R fuses and rejection kits. This exceptional current-limiting capacity ensures that unpredictable, high-energy faults are safely cleared inside the disconnect, preventing catastrophic upstream component failure and fire hazards.
- Outfitted with robust, versatile mechanical lugs, the terminal block easily accepts solid or stranded wire sizes ranging from 14 AWG to 10 AWG for copper, and 12 AWG to 1/0 AWG for aluminum cables. This flexible connection interface eliminates the need for specialized pin adapters or reducing sleeves, ensuring a secure, low-resistance termination that handles a maximum of 30 HP at 240V AC.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 6.5 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (14 AWG...10 AWG), 40-40 lbf.in 8.37-8.37 mm² (8 AWG), 45-45 lbf.in 12.3-21.12 mm² (6 AWG...4 AWG)50-50 lbf.in (3 AWG...1 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 16 kg CO2 eq., 16.25560727691108 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 39 kg CO2 eq., 38.550770252097664 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...10 AWG copper |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 78 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 39.7412 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 17.5 in |
| Certificate Agency | CSA |
| Short-circuit Current | 100 kA maximum cartridge |
| Package Weight(Lbs) | 7.067 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 2.102610736133118, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.7392633668456517, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 20 kg CO2 eq., 20.231998513446104 |
| Local Publishable Date | 2026-07-03 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | neutral (factory installed) |
| Electrical Connection | lugs |
| Number Of Poles | 2 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | general duty |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2305006EN |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 10.56 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 77.8802501454336 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
