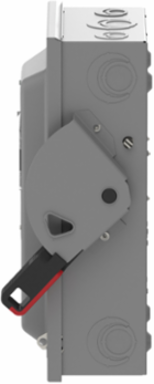

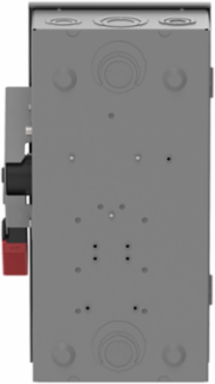

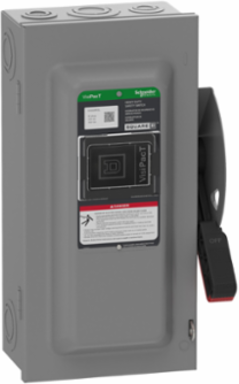

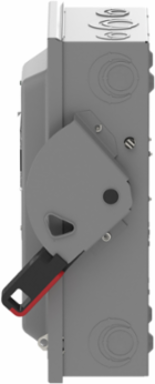

Square D VH222BGL Heavy Duty Safety Switch, 60A, 2 Pole, NEMA 1, 240V, Fused
- MPN: VH222BGL
- PPN: SCH-VH222BGL
CAD
$320.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The VH222BGL Heavy Duty Safety Switch from Schneider Electric is built to provide robust electrical control and protection for your operations. Designed for use in various applications, this switch features a 60A capacity and a reliable 2-pole configuration, making it ideal for managing power in commercial and industrial environments. It operates at 240V and is equipped with fuses that enhance its safety performance, all contained within a NEMA 1 enclosure suited for indoor use. This heavy-duty safety switch not only ensures efficient and secure operation but also helps maintain compliance with electrical safety regulations, reinforcing its essential role in any electrical system.
Features
- This 60A, 240V AC/250V DC single-throw switch comes fully equipped with a factory-installed solid neutral assembly that is pre-bonded to the NEMA 1 enclosure. Tested to meet the stringent safety requirements of CSA C22.2 No 4 and UL98 standards, it functions out of the box as a code-compliant service entrance disconnect, significantly streamlining your engineering approvals and cutting down on the field labor required to add third-party grounding or neutral kits.
- When paired with standard Class J fuses, this heavy-duty switch delivers an outstanding 200 kA short-circuit current rating (SCCR) to withstand massive electrical fault energies without destructive cabinet failure. The surface-mount steel enclosure comes configured for Class J fuses out of the box.
- Purpose-built for grueling, heavy-application environments, this Square D disconnect features a robust, quick-make, quick-break blade mechanism that delivers a mechanical operational lifespan. The high-visibility, color-coded indicator handle stands up to continuous physical cycling while providing clear at-a-glance status, ensuring crisp contact engagement and reducing terminal pitting over years of service on busy factory floors.

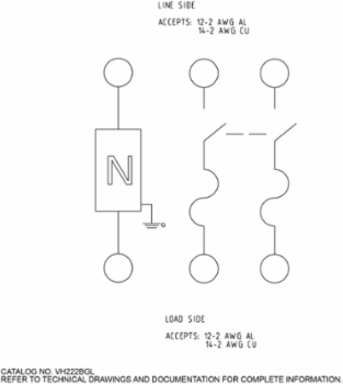

- The line and load terminals are equipped with rugged, factory-installed mechanical lugs that securely accommodate a wide wiring range from AWG 14 to AWG 3 copper, or AWG 12 to AWG 3 aluminum. Complete with a pre-installed equipment grounding kit and clearly specified torque ratings up to 50 lbf.in, the spacious enclosure layout ensures electrical contractors have plenty of knuckle room to route thick conductors and complete code-compliant terminations efficiently.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

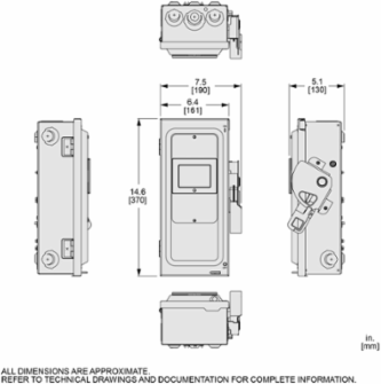

Depth5.11 in
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 3 hp at 240 V AC 50-60 Hz for 1 phase motors7.5 hp at 240 V AC 50-60 Hz for 3 phase motors, 10 hp at 240 V AC 50-60 Hz for 1 phase motors, 15 hp at 240 V AC 50-60 Hz for 3 phase motors10 hp at 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1530080516702423, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.13590701769789323, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 8.661376747608521
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2345
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 3 copperAWG 12...AWG 3 aluminium
- Device Composition
- neutral (factory bonded)
- Electrical Connection
- lugs
- Fuse Type
- J
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Services
- factory installation
- Sustainable Packaging
- Yes
- Wiring Configuration
- 3-wire (2P + N)
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 83
- Width Nominal
- 6.36 in
- [Ue] Rated Operational Voltage
- 250 V DC240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Tightening Torque50-50 lbf.in (AWG 3)45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8)50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Carbon Footprint Of The End-of-life Phase [C1 To C4]9 kg CO2 eq., 9.213820047725156
Carbon Footprint Of The Manufacturing Phase [A1 To A3]23 kg CO2 eq., 23.4755747592267
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Number Of Poles2
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Software Versionv5.9.4
Total Lifecycle Carbon Footprint43 kg CO2 eq.
Pep CodeENVPEP2303036EN
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal14.57 in
Certificate AgencyUL listed file E2875
Short-circuit Current200 kA for J
Package Weight(Lbs)3.615 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-10-24
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Carbon Footprint42.63968662392851
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2303036EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
