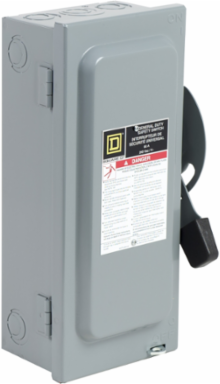

Square D CD222N General Duty Safety Switch, 60A, 120/240V AC, 2 Poles, NEMA 1
- MPN: CD222N
- UPC: 785901964339
- PPN: SCH-CD222N
CAD
$175.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.
Features
- This Square D general-duty safety switch functions as a 2-pole fusible disconnect rated for a continuous 60 A load at 240 V AC. It is engineered to provide a reliable manual means of disconnecting power while housing standard plug fuses, making it an excellent solution for residential or light commercial branch circuits, heating systems, and small air conditioning units.
- Equipped with an integrated solid neutral assembly and standard plug fuse holders, this unit provides comprehensive overcurrent and short-circuit protection. It acts as a dedicated protective barrier that safely clears dangerous electrical overloads and faults, preventing expensive thermal damage to downstream machinery and household appliances.
- The internal mechanisms are fully encased in a rugged, heavy-duty NEMA Type 1 sheet steel enclosure designed strictly for indoor utility installations. The durable gray baked enamel finish resists minor abrasions and scuffs, protecting building personnel from live conductors while shielding internal line connections from airborne workshop dust and lint.
- The enclosure features generous interior wire-bending space and is outfitted with multiple concentric knockouts on the top, bottom, and sides to accommodate standard electrical conduit fittings. The pre-installed line and load lugs accept a wide wiring spectrum up to 2 AWG copper or aluminum conductors, drastically reducing installation labor during fast field hookups.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 4.87 in |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (14 AWG...10 AWG), 45-45 lbf.in 8.37-8.37 mm² (8 AWG)45-45 lbf.in 12.3-21.12 mm² (6 AWG...4 AWG), 50-50 lbf.in 26.67-26.67 mm² (3 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 8 kg CO2 eq., 8.138154598232827 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 19 kg CO2 eq., 19.29993280768665 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper or aluminium |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 38 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 7.45 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 1.05264423156063, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.37010241855099985, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 9 kg CO2 eq., 8.661554925675597 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | neutral (factory installed) |
| Electrical Connection | lugs |
| Number Of Poles | 2 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | general duty |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2305006EN |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 14.6 in |
| Certificate Agency | CSA |
| Short-circuit Current | 100 kA maximum cartridge |
| Package Weight(Lbs) | 3.538 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 37.5223889817067 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 1 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
