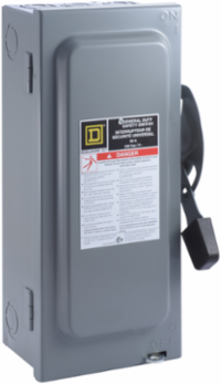

Square D CD322N General Duty Safety Switch 60A, 120/240V AC, 3 Poles, NEMA 1
- MPN: CD322N
- UPC: 785901404934
- PPN: SCH-CD322N
- UNSPSC: 39122205
CAD
$265.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 120/240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.
Features
- Designed for residential and commercial applications where durability and economy are prime considerations
- Reliable performance and long term durability
- Easy installation
- Fusible and non-fusible swiches
- An excellent choice for disconnecting lighting, air conditioning and appliances
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 4.87 in |
| Weight | 3651 g |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
| Ue Rated Operational Voltage | 120/240 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (14 AWG...10 AWG), 45-45 lbf.in 8.37-8.37 mm² (8 AWG)45-45 lbf.in 12.3-21.12 mm² (6 AWG...4 AWG), 50-50 lbf.in 26.67-26.67 mm² (3 AWG) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 8 kg CO2 eq., 8.398078699306968 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 20 kg CO2 eq., 19.916352368814007 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper or aluminium |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 43 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 7.45 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 100 kA maximum cartridge |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 89 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 1.0862645815228547, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.3819231006584795, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 kg CO2 eq., 12.992332388513393 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | neutral (factory installed) |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | general duty |
| Sustainable Packaging | Yes |
| Database Version | 2022-01 |
| Height Nominal | 14.6 in |
| Certificate Agency | CSA |
| Customs Code | 8536509045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 42.774951138815695 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 1 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
