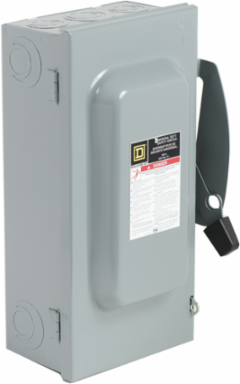

Square D CD223N General Duty Safety Switch, 100A, 120/240VAC, 2-Pole, NEMA 1
- MPN: CD223N
- UPC: 785901964353
- PPN: SCH-CD223N
CAD
$215.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 100A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.
Features
- Constructed from durable galvannealed steel, this NEMA 1 rated enclosure is explicitly designed for indoor surface mounting in dry environments like garages, basements, or commercial utility rooms. Utilizing this indoor-specific general duty safety switch protects the internal components from accidental physical contact and dust buildup, ensuring reliable, long-lasting performance for your electrical distribution system.
- Engineered to manage heavy residential and light commercial equipment, this 2-pole disconnect switch safely handles 100 amps at 120/240VAC and supports motor loads up to 30 HP. It features a rugged quick-make, quick-break operating mechanism that minimizes dangerous electrical arcing during operation, guaranteeing safe, continuous power control for branch circuits, well pumps, and heavy appliances.
- Designed to accept standard cartridge fuses, this fusible disconnect switch provides an impressive 100kA maximum short-circuit current rating (SCCR) to aggressively defend your hardware against destructive power surges. Complete with a factory-installed solid neutral, it instantly isolates critical electrical faults and breaks the circuit, preventing costly fire hazards and protecting expensive downline equipment from catastrophic damage.
- Fully UL Listed and CSA Certified, this Square D general duty safety switch meets the most rigorous North American code requirements for safe use as residential or commercial service equipment. Installing this factory-tested, code-compliant hardware guarantees a seamless, penalty-free inspection process for licensed electricians while ensuring commercial liability and homeowner's insurance policies remain strictly valid.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth6.5 in
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (14 AWG...10 AWG), 40-40 lbf.in 8.37-8.37 mm² (8 AWG), 45-45 lbf.in 12.3-21.12 mm² (6 AWG...4 AWG)50-50 lbf.in (3 AWG...1 AWG)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 16 kg CO2 eq., 15.795564620142684
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 37 kg CO2 eq., 37.459762179305876
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Number Of Poles
- 2
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- general duty
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2305006EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 89
- Width Nominal
- 10.56 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]2.043105691952189, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7183418055934753, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]20 kg CO2 eq., 20.231998513446104
Local Publishable Date2026-07-03
Stocking FlagN
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge12 AWG...1/0 AWG aluminium14 AWG...10 AWG copper
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint76 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh39.7412
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal17.5 in
Certificate AgencyCSA
Short-circuit Current100 kA maximum cartridge
Package Weight(Lbs)6.867 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 76.24877281044033
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 1 galvannealed steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
