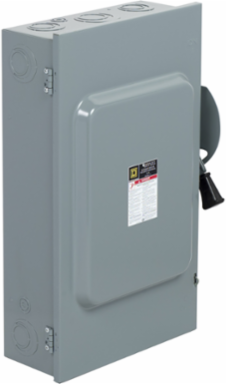

Square D CD224N General Duty Safety Switch 200A 120/240V 2-Pole NEMA 1
- MPN: CD224N
- UPC: 785901964384
- PPN: SCH-CD224N
CAD
$502.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 200A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.
Features
- This Square D by Schneider Electric general duty disconnect switch is engineered with a robust 200 A current rating at 120/240 V AC, making it perfect for isolating large HVAC units, high-capacity lighting banks, and heavy-duty commercial appliances. The 2-pole, 3-wire single-throw design safely accommodates single-phase and selected three-phase motor loads up to 60 hp, providing building electrical contractors with an efficient power distribution solution.
- Equipped as a fusible disconnect switch, this unit accepts standard cartridge fuses and offers a high-fault short-circuit current rating (SCCR) up to 100 kA when paired with appropriate Class R fuse rejection kits. This high interrupt capacity ensures complete protection downstream, shielding valuable electrical equipment from catastrophic thermal damage during line-side fault events.
- To streamline on-site electrical installations, this safety switch features a factory-installed, solid bonded neutral assembly right out of the box. This built-in configuration allows electrical installers to immediately use the device as a dedicated service entrance disconnect, avoiding the need for separate aftermarket ground/neutral bonding kits.
- Housed in a NEMA Type 1 indoor enclosure constructed from high-grade galvannealed steel, this unit provides exceptional resistance against corrosion and localized mechanical impact. The surface-mounted cabinet utilizes a heavy-duty quick-make, quick-break operating handle mechanism to minimize contact arcing, drastically extending the lifespan of internal copper contact surfaces under frequent cycling.
- Featuring heavy-duty mechanical line and load lugs, the connection blocks are certified to clamp securely onto AWG 6 through 250 kcmil copper or aluminum wiring. The oversized lug housing accommodates thick feeder lines easily, allowing electricians to establish high-torque, low-resistance connections that prevent hot-spot generation over years of continuous load.
- Fully tested and certified to stringent CSA standards, this authentic Schneider Electric Canada component simplifies the field inspection and commissioning process for commercial construction projects. Additionally, it features Green Premium status with complete RoHS and REACh compliance, guaranteeing that your infrastructure updates align perfectly with local environmental regulations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth8.25 in
Complementary Attributes
- Line Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 5.779038751948967, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8414843040317815, 0.8 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 39 kg CO2 eq., 38.79225991312165
- Local Publishable Date
- 2026-07-03
- Stocking Flag
- N
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 6 AWG...250 kcmil copper or aluminium
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v5.9.4
- Tightening Torque
- 275-275 lbf.in (6 AWG...250 kcmil)
- Pep Code
- ENVPEP2305005EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 29 in
- Certificate Agency
- CSA
- Short-circuit Current
- 100 kA maximum cartridge
- Package Weight(Lbs)
- 19.078 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]43 kg CO2 eq., 42.94353734968924
Carbon Footprint Of The Manufacturing Phase [A1 To A3]89 kg CO2 eq., 89.34157207441318
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionneutral (factory installed)
Electrical Connectionlugs
Number Of Poles2
Product Or Component TypeSingle Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint178 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 200A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1
Functional-unit UnitEACH
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %85
Width Nominal19 in
[Ue] Rated Operational Voltage120/240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 177.69789239320482
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305005EN
Nema Degree Of ProtectionNEMA 1 galvannealed steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
