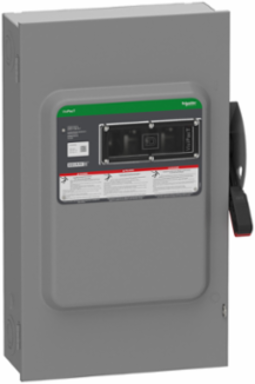

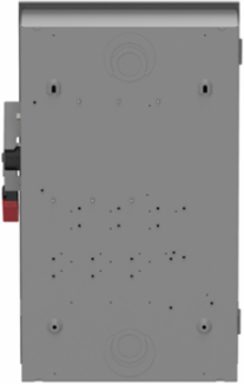

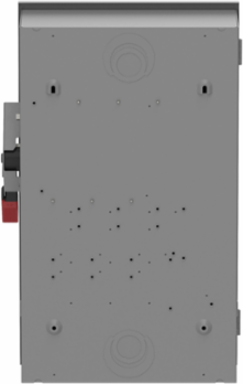

Square D VH324BGL Heavy Duty Safety Switch 240V 200A 3 Pole NEMA 1 with Viewing Window
- MPN: VH324BGL
- PPN: SCH-VH324BGL
CAD
$1186.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty safety switch from Schneider Electric is engineered to offer optimal performance and reliability for electrical control systems. Designed for a voltage rating of 240V and capable of handling up to 200A, it features a robust three-pole configuration that ensures secure and efficient circuit isolation. The NEMA 1 enclosure provides essential protection against dust and incidental contact, while the integrated viewing window allows for easy monitoring of operational status without compromising safety. This combination of features makes it an ideal choice for various industrial applications where safety and durability are paramount.
Features

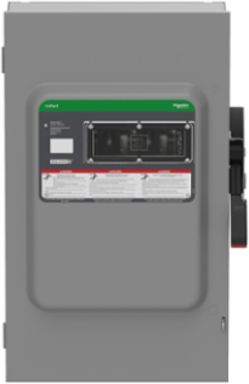

- This heavy-duty VisiPacT switch features a factory-installed viewing window built directly into the front cover, allowing operators to visually verify that the contact blades are fully disconnected before opening the enclosure.

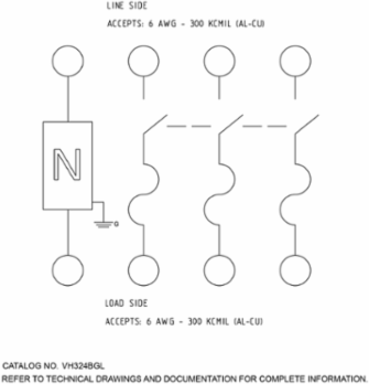

- This 200A, 240V AC/250V DC single-throw switch comes fully equipped with a factory-installed solid neutral assembly that is pre-bonded to the NEMA 1 enclosure.
- The line and load terminals are equipped with rugged, factory-installed mechanical lugs that securely accommodate a wide wiring range from 6 AWG up to 250 kcmil copper or aluminum conductors. Complete with a pre-installed equipment grounding kit and clearly specified torque ratings, the spacious enclosure layout ensures electrical contractors have plenty of knuckle room to route thick conductors and complete code-compliant terminations efficiently.
Documentation & Downloads
Specifications

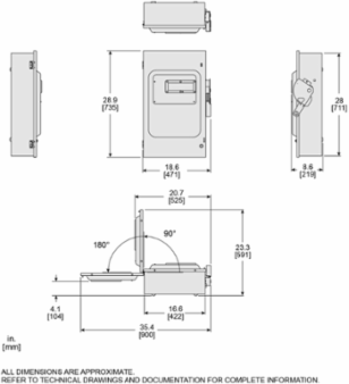

Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.6 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 15 hp at 240 V AC 50-60 Hz for 1 phase motors25 hp at 240 V AC 50-60 Hz for 3 phase motors, 60 hp at 240 V AC 50-60 Hz for 3 phase motors, 40 hp at 250 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 59 kg CO2 eq., 59.424207170592375 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 145 kg CO2 eq., 144.9134911837968 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...250 kcmil copper or aluminium |
| Device Composition | neutral (factory bonded) |
| Electrical Connection | lugs |
| Fuse Type | J |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 272 kg CO2 eq. |
| Pep Code | ENVPEP2303037EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 28.93 in |
| Certificate Agency | UL listed file E2875 |
| Short-circuit Current | 200 kA for J |
| Package Weight(Lbs) | 24.7 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 7.456202633548866, 7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.38535143792524496, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.54437565158782 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil) |
| Wiring Configuration | 4-wire (3PH + N) |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 16.61 in |
| [Ue] Rated Operational Voltage | 250 V DC240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 271.72362807745105 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303037EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303037EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
