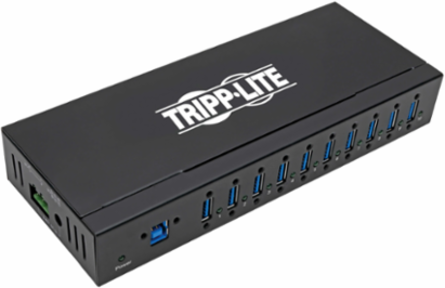

Tripp Lite U360-010-IND 10-Port Industrial USB 3.0 Hub, Metal Housing, 20 kV ESD Immunity
Tripp Lite U360-010-IND 10-Port Industrial USB 3.0 Hub, Metal Housing, 20 kV ESD Immunity
- MPN: U360-010-IND
- UPC: 037332231246
- PPN: TRP-U360-010-IND
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$352.51/ EA
Features

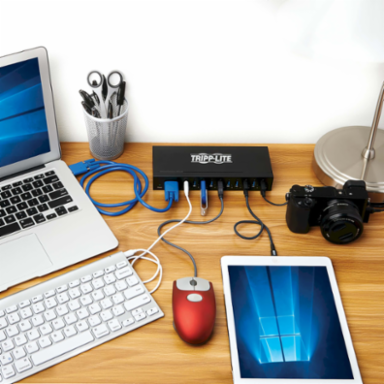

- Adds barcode scanner, serial device, sensor—up to 10 devices—to your host computer
- Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
- Rugged metal housing designed to withstand harsh warehouse and factory environments
- ESD protection to ±20 kV cuts potential static damage to your connected peripherals
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
- Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
- Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
- Plug-and-Play Hub Offers Flexible Power and Mounting Options
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- USB Power Delivery (PD) Charging Support
- No
Driver RequiredNo
TechnologyUSB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1)
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 11
- Side B - Connector 1
- (10) USB 3.0 A (FEMALE)
Side A - Connector 1USB 3.0 B (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Material of Construction
- Iron (SGCC)
- Shipping Weight (lbs.)
- 1.43
- Unit Packaging Type
- Box

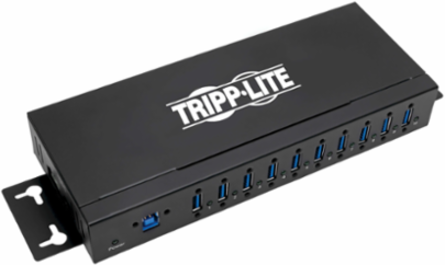

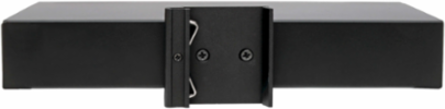

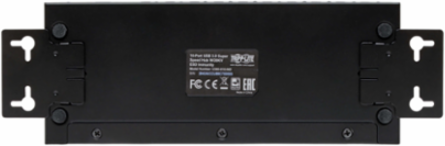

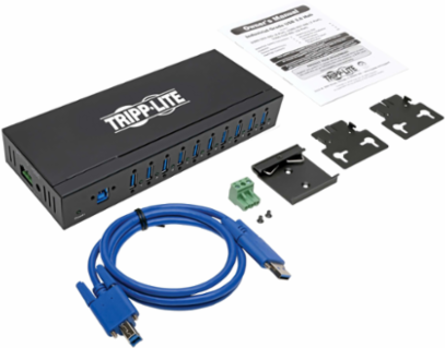

Included Mounting AccessoriesYes
Shipping Dimensions (hwd / in.)2.64 x 8.94 x 4.49
Unit Dimensions (hwd / in.)1.3 x 7.9 x 3.2
Unit Weight (lbs.)0.95
User Interface, Alerts & Controls
- LED Indicators
- Green (Power, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240

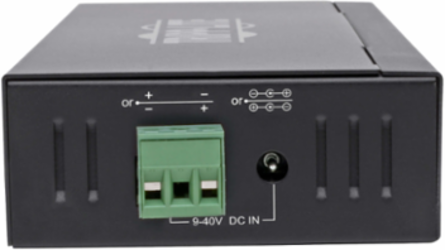

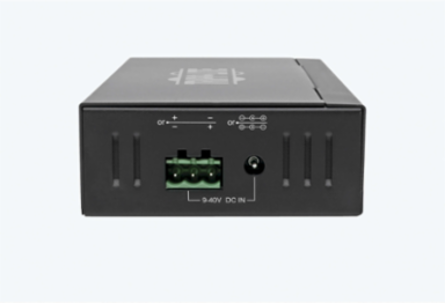

- External Power Supply Output Specs (V / A)
- 9V - 40V / 3A
- Bus Powered
- Yes
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 1.33-51.3 W
Storage Temperature Range14 to 131 F ( -10 to 55 C)
BTUs4.55-175.2 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output (USB-A 3.0)
Overview
- UPC Code
- 037332231246
Over Current ProtectionYes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
