Tripp Lite U223-007-IND 7-Port Industrial-Grade USB 2.0 Hub, Metal Housing, 15 kV ESD Immunity, 1 ft
Tripp Lite U223-007-IND 7-Port Industrial-Grade USB 2.0 Hub, Metal Housing, 15 kV ESD Immunity, 1 ft
- MPN: U223-007-IND
- UPC: 037332181428
- PPN: TRP-U223-007-IND
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$209.23/ EA
Features

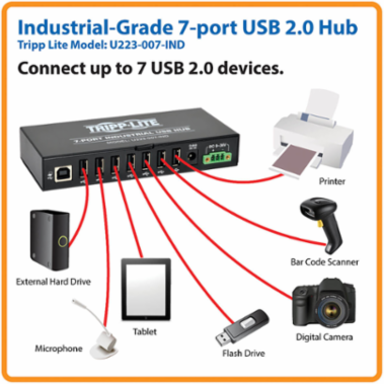

- Adds barcode scanner, serial device, sensor—up to 7 devices—to your host computer
- Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
- Rugged metal housing designed to withstand harsh warehouse and factory environments
- ESD protection to ±15 kV cuts potential static damage to your connected peripherals
- Plug-and-play operation with no software required for easy, immediate installation
- 2-year limited warranty
- Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
- Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent

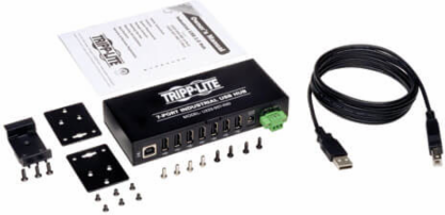

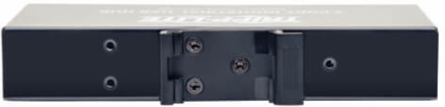

- Plug-and-Play Hub Offers Flexible Power and Mounting Options
Specifications
Features & Specifications
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Technology
- USB 2.0 (High Speed); USB
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (7) USB A (FEMALE)
Side A - Connector 1USB B (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Material of Construction
- Iron
- Shipping Weight (lbs.)
- 1.20
- Unit Packaging Type
- Box
Included Mounting AccessoriesYes
Shipping Dimensions (hwd / in.)2.80 x 9.10 x 6.30
Unit Dimensions (hwd / in.)1 x 5.6 x 2.5
Unit Weight (lbs.)1
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- Bus Powered
- Yes
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Environmental
- Operating Temperature Range
- 32 to 140 F (0 to 60 C)
- Relative Humidity
- 5% to 95% RH, Non-Condensing
- Power Consumption (Watts)
- 2.5
Storage Temperature Range14 to 176 F (-10 to 80 C)
BTUs8.5 BTU/Hr
Power Provided to Connected Device(s)5V 0.5A (2.5W) Output per USB Port
Overview
- UPC Code
- 037332181428
Over Current ProtectionYes
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
