Tripp Lite U360-007-IND 7-Port USB 3.0 SuperSpeed Hub, 20 kV ESD Immunity, Metal Housing
- MPN: U360-007-IND
- UPC: 037332186300
- PPN: TRP-U360-007-IND
CAD
$324.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
7-Port USB 3.0 SuperSpeed Hub, 20 kV ESD Immunity, Metal Housing
Features
- Adds barcode scanner, serial device, sensor—up to 7 devices—to your host computer
- Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
- Rugged metal housing designed to withstand harsh warehouse and factory environments
- ESD protection to ±20 kV cuts potential static damage to your connected peripherals
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Industrial-Grade USB 3.0 Hub Adds up to 7 USB Devices to Your Computer
- Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
- Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
- Plug-and-Play Hub Offers Flexible Power and Mounting Options
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Technology
- USB; USB 3.0 (SuperSpeed)
Driver RequiredNo
Certifications
- Certifications
- Tested to Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (7) USB 3.0 A (FEMALE)
Side A - Connector 1USB 3.0 A (MALE)
Physical
- Color
- Black
- Material of Construction
- Steel (SGCC)
- Shipping Weight (lbs.)
- 1.30
- Unit Packaging Type
- Box

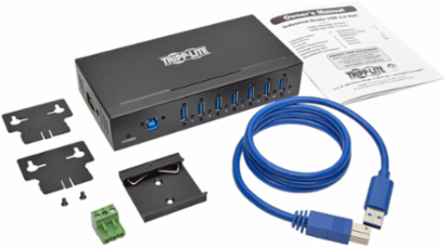

Included Mounting AccessoriesYes
Shipping Dimensions (hwd / in.)2.50 x 6.80 x 4.30
Unit Dimensions (hwd / in.)1.3 x 6.2 x 3.1
Unit Weight (lbs.)0.75
User Interface, Alerts & Controls
- LED Indicators
- Green (Power, 1, 2, 3, 4, 5, 6, 7)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240

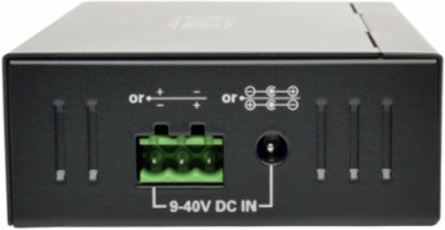

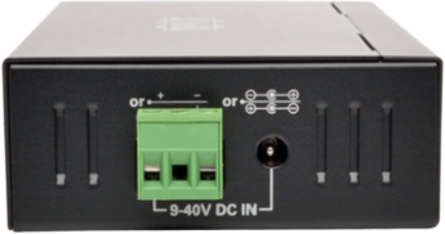

- External Power Supply Output Specs (V / A)
- 9V - 40V / 3A
- Bus Powered
- Yes
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 32.4
Storage Temperature Range14 to 131 F ( -10 to 55 C)
BTUs110.6 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output (USB-A 3.0)
Overview
- UPC Code
- 037332186300
Over Current ProtectionYes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
