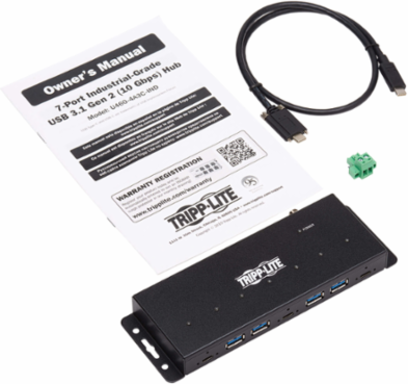

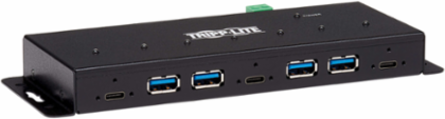

Tripp Lite U460-4A3C-IND Industrial 7-Port USB 3.1 Gen 2 Hub (10Gbps, Metal, ESD Protection)
- MPN: U460-4A3C-IND
- UPC: 037332239914
- PPN: TRP-U460-4A3C-IND
CAD
$383.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial 7-Port USB 3.1 Gen 2 Hub (10Gbps, Metal, ESD Protection)
Features
- Adds barcode scanner, serial device, sensor—up to 7 devices—to your host computer
- Supports USB 3.1 Gen 2 rates up to 10 Gbps to ensure super-fast data transfers
- ESD protection to ±15 kV helps prevent potential static damage to connected devices
- Rugged metal housing withstands warehouse and factory environments
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Industrial-Grade USB 3.1 Gen 2 Hub Adds up to 7 USB Devices to Your Computer
- Transfers Data at Super-Fast USB 3.1 Gen 2 Speeds and Charges Mobile Devices
- USB-C Ports Support Cables with Locking Screws for Extra-Secure Connections
- Protects Your Devices Against Electrostatic Discharge (ESD) and Overcurrent
- Plug-and-Play Hub Offers Flexible Power and Mounting Options
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.1 Gen 2 (up to 10 Gbps)
- UASP Support
- Yes
Driver RequiredNo
TechnologyUSB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); USB 3.1 (Gen 2)
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (4) USB 3.1 A (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB C (FEMALE)
Side B - Connector 2(3) USB C (FEMALE)
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 0.8 x 7.4 x 2.5
- Unit Weight (lbs.)
- 0.67
Material of ConstructionMetal (SECC)
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- x1 Power (Blue) and x7 device activity (Green)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve
Voltage Compatibility (VDC)12-24
Bus PoweredNo
Output
- Charging Ports / Amps
- (7) 1.5A
Charging Watts7.5
Environmental
- Operating Temperature Range
- 32 to 122 F (0 to 50 C)
- Relative Humidity
- 0% to 90% RH, Non-Condensing
Storage Temperature Range14 to 176 F (-10 to 80 C)
BTUs10.23 BTU/hr
Overview
- UPC Code
- 037332239914
Over Current ProtectionYes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
