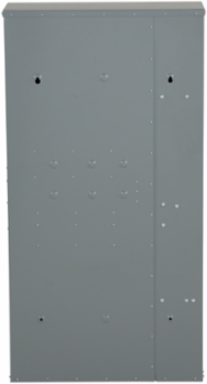

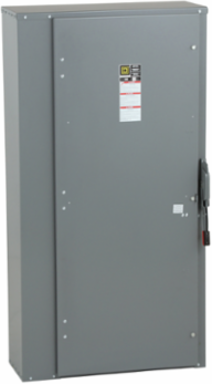

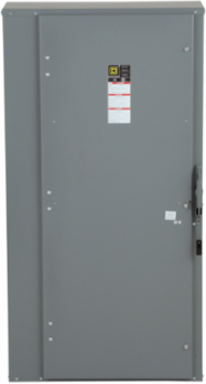

Square D H368 Heavy Duty Fusible Safety Switch 600V 1200A 3P NEMA 1
- MPN: H368
- UPC: 785901195467
- PPN: SCH-H368
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance, the Heavy Duty Fusible Safety Switch from Schneider Electric is a reliable solution for managing electrical safety in demanding applications. With a rated operational voltage of 600V and a current capacity of 1200A across three poles, this safety switch is designed to handle heavy-duty operations while ensuring compliance with stringent safety standards. Constructed from halogen-free materials and featuring a NEMA 1 rating, it is not only environmentally friendly but also built to withstand the rigors of industrial environments. Weighing 167.4 kg and measuring 36.62 inches in width, this surface-mounted switch is equipped with fusible disconnect capabilities and is UL listed, making it a trusted choice for professionals seeking durability and efficiency in electrical control systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 17.75 in |
|---|
Complementary Attributes
| Line Rated Current | 1200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 500 hp at 600 V AC 50-60 Hz for 3 phase motors200 hp at 480 V AC 50-60 Hz for 3 phase motors, 500 hp at 480 V AC 50-60 Hz for 3 phase motors250 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 0.9645561446428399 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.014002140520345 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 3/0 AWG...750 kcmil copper or aluminium |
| Device Composition | none |
| Electrical Connection | lugs |
| Fuse Type | L |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Tightening Torque | 375-375 lbf.in 85.01-380 mm² (3/0 AWG...750 kcmil) |
| Wiring Configuration | 3-wire |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 93 |

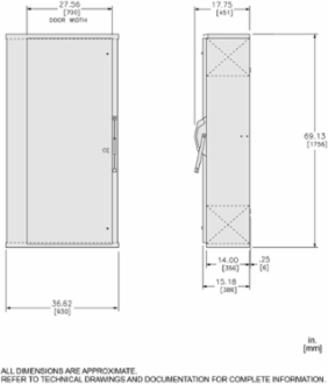

| Width Nominal | 36.62 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 163.747 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.8059580189361879, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.07194881770817735, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 462 kg CO2 eq., 2461.5930719381868 |
| Local Publishable Date | 2026-07-17 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1917 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 2 467 kg CO2 eq. |
| Pep Code | ENVPEP2503030EN |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 69.13 in |
| Certificate Agency | UL listed file E154828 |
| Short-circuit Current | 200 kA maximum for L |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503030EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 2467.4495370599943 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503030EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
