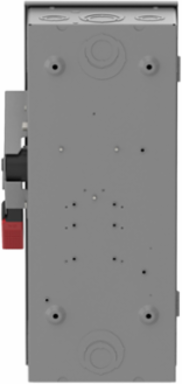

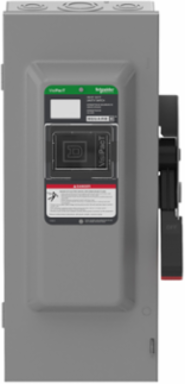

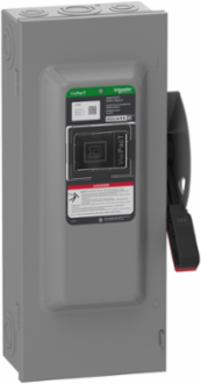

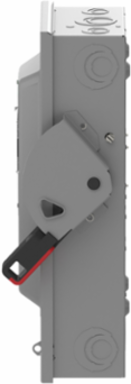

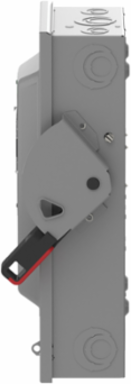

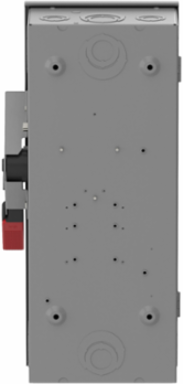

Schneider Electric VH363 Heavy Duty Safety Switch, 3 Pole, 100A, NEMA 1, 600V, Fused, Viewing Window

MPN: VH363
PPN: SCH-VH363
UNSPSC: 39122205

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$657.63

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The VH363 Heavy Duty Safety Switch from Schneider Electric is engineered to enhance safety and reliability in electrical systems. With a robust three-pole design, it accommodates a maximum current of 100A and is rated for up to 600V, making it suitable for a variety of industrial and commercial applications. This fused switch features a convenient viewing window that allows for quick status checks without compromising safety. Ideal for environments that necessitate secure and efficient electrical control, this safety switch combines durability with thoughtful design, ensuring optimal performance in demanding conditions.

Features

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
Visipact safety switches come with a viewing window for quick visual verification of switch position
Designed to have a mechanical endurance three times greater than NEMA standards
QR code allow quick access to critical ratings and other useful product documentation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

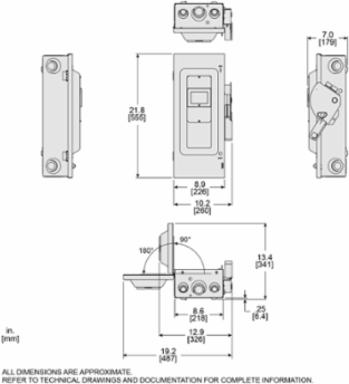

Depth	7.04 in

Weight	9000 g

Complementary Attributes

Line Rated Current	100 A

Ue Rated Operational Voltage	600 V AC/DC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fuse Type	H or K, R or J
Tightening Torque	50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
Carbon Footprint Of The Distribution Phase A4	2.594268116258045, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.30579078982025976, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	30 kg CO2 eq., 30.34737347722995
Local Publishable Date	2026-09-05
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	heavy application
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Services	field installed kit available
Sustainable Packaging	Yes
Wiring Configuration	3-wire
Data Source	extrapolated product
Width Nominal	8.91 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Pep End Of Validity Date Calculated	0022-06-14

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Motor Power Hp	25 hp at 480 V AC 50-60 Hz for 3 phase motors, 60 hp at 480 V AC 50-60 Hz for 3 phase motors30 hp at 600 V AC 50-60 Hz for 3 phase motors, 100 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC
Short Circuit Current	10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J
Carbon Footprint Of The End Of Life Phase C1 To C4	21 kg CO2 eq., 20.7310951073816
Carbon Footprint Of The Manufacturing Phase A1 To A3	53 kg CO2 eq., 52.820043208260074
Local Data Status	Publishable
Pre Comm Date	2023-04-05
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2530
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper
Device Composition	field installed kit available
Electrical Connection	lugs
Number Of Poles	3
Product Or Component Type	Single Throw Safety Switch
Series Name	heavy duty
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	107 kg CO2 eq.
Database Version	2022-01
Height Nominal	21.84 in
Certificate Agency	UL listed file E2875
Customs Code	8536509045
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
Functional Unit Unit	Unit
Recyclability Potential In %	83

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	106.79857069894993
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303036EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2303036EN
Nema Degree Of Protection	NEMA 1 steel
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-10-24
Psr Version	PSR-0005-ed2-2016 03 29
