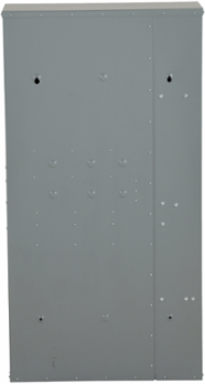

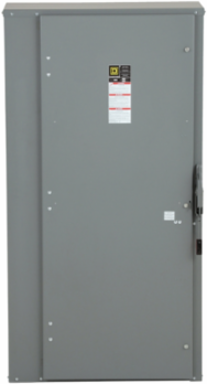

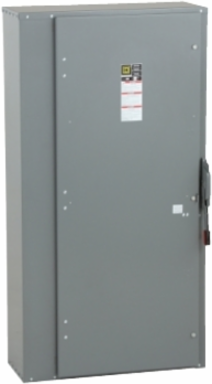

Square D CH367N Safety switch, heavy duty, fusible, 800A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1
- MPN: CH367N
- PPN: SCH-CH367N
- UNSPSC: 39122205
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 800 amps, three poles, 500 horse power, with a voltage of 240 VAC and 250 VDC. This device is Type 1 rated with a steel enclosure. This has factory installed/bonded neutral.
Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- All feature a quick-make, quick-break operating mechanism, a dual cover interlock
- Designed to have a mechanical endurance three times greater than NEMA standards
- UL listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 17.75 in |
| Weight | 186 g |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 500 hp at 600 V AC 50/60 Hz for 3 phase motors, 500 hp at 480 V AC 50/60 Hz for 3 phase motors, 500 hp at 600 V AC 50/60 Hz for 1 phase motors |
|---|---|
| Ue Rated Operational Voltage | 600 V AC/DC |
| Line Rated Current | 800 A |
|---|
Important Information Attributes
| Certificate Agency | cUL, UL listed file E154828 |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.4 kg CO2 eq., 0.4281391821868275 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 1.781701981044254 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2406 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Awg Gauge | 3/0 AWG...750 kcmil copper or aluminium |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 095 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 36.62 in |
| Customs Code | 8537109170 |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 93 |
| Carbon Footprint Of The Distribution Phase A4 | 0.35774196144074777, 0.4 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.03193604451537081, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 093 kg CO2 eq., 1092.6315181856207 |
| Local Publishable Date | 2026-08-11 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Device Composition | neutral (factory installed) |
| Electrical Connection | lugs |
| Motor Power Hp | 250 hp at 600 V AC 50/60 Hz for 3 phase motors200 hp at 480 V AC 50/60 Hz for 3 phase motors50 hp at 600 V AC 50/60 Hz for 1 phase motors |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | No |
| Software Version | v6.2.4 |
| Tightening Torque | 375-375 lbf.in 85.01-380.0 mm² (3/0 AWG...750 kcmil) |
| Database Version | 2024-01 |
| Height Nominal | 69.13 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP2503030EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503030EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Carbon Footprint | 1095.231037354808 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
