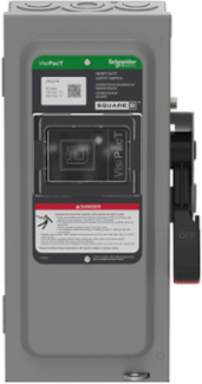

Square D VH321BGL Heavy Duty Safety Switch 240V 30A 3-Pole NEMA 1 with Viewing Window
- MPN: VH321BGL
- PPN: SCH-VH321BGL
CAD
$301.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The VH321BGL Heavy Duty Safety Switch from Schneider Electric is engineered to deliver reliable performance for power distribution applications. This robust switch operates at 240V and supports a 30A capacity across three poles, making it well-suited for various industrial environments. Featuring a NEMA 1 enclosure with a convenient viewing window, this safety switch allows for quick visual inspection, enhancing operational efficiency and safety. Its durable construction ensures long-lasting use, positioning it as a dependable solution for disconnecting and safeguarding electrical circuits in demanding settings.
Features
- Rated for 30 Amps at 240V AC, this NEMA 1-rated safety switch is engineered for high-performance motor disconnect and branch circuit protection. Designed to handle the rigorous duty cycles of commercial and industrial environments, it provides a reliable, visible-blade disconnect means that ensures your machinery is completely de-energized during maintenance, preventing accidental startups and equipment damage.
- Factory-installed with a dedicated green-screw ground bar, this "BGL" variant eliminates the need for separate grounding kits, saving you time and money on-site. This built-in feature ensures a low-impedance path to ground, which is critical for clearing electrical faults and maintaining strict compliance with National Electrical Code (NEC) safety standards for permanent installations.
- Constructed with a durable, indoor-rated (NEMA 1) galvannealed steel enclosure and finished with a heat-cured polyester powder coat, this switch is built to resist corrosion and impact. The robust housing protects the internal mechanical components from dust and physical debris, ensuring long-term operational life in indoor commercial spaces like garages, machine shops, and utility rooms.
- Featuring Schneider Electric’s legendary spring-loaded operating mechanism, the internal contacts snap open and closed with high speed, regardless of how fast the external handle is moved. This rapid action effectively suppresses arcing and significantly extends the life of the copper contacts, providing a safer, more durable switching solution that reduces the risk of thermal failure during heavy-load operations.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Short-Circuit Current
- 200 kA for J fuse
- Number of Poles
- 3
- Device Application
- Heavy application
- Fuse Type
- J
- Mounting Type
- Surface

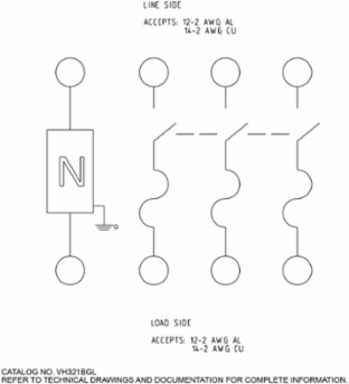

- Wiring Configuration
- 4-wire (3P + N)
- Tightening Torque
- 35-45 lbf.in
- Net Weight
- 4 kg (8.82 lb)
- Service Entrance
- Suitable for Canada
- Device Composition
- Neutral (factory bonded)
- Environmental Disclosure
- ENVPEP2303036EN
- Country of Origin
- US
Voltage240 V AC, 250 V DC
Device TypeSingle Throw Safety Switch
Duty RatingHeavy duty
Disconnect TypeFusible disconnect
Motor Power1.5 Hp (1 phase), 3 Hp (3 phase), 7.5 Hp (3 phase) at 240 V AC, 5 Hp at 250 V DC
Electrical ConnectionLugs
Wire SizeAWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper

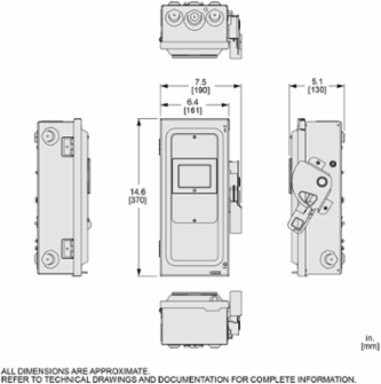

Dimensions (HxWxD)14.57 in x 6.36 in x 5.11 in
Grounding KitFactory installation
Enclosure RatingNEMA 1 steel
ComplianceUL Listed (file E2875), RoHS Compliant, REACH SVHC Free
Series NameHeavy duty
