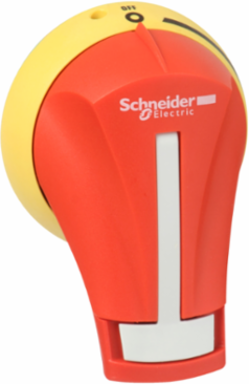

Schneider Electric GS2AH420 TeSys GS Red Rotary Handle, 30A, NEMA 4/4X, Front Mounting
- MPN: GS2AH420
- PPN: SCH-GS2AH420
CAD
$125.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately).
Features
- Engineered specifically for flawless physical integration, this external frontal rotary handle is designed exclusively for TeSys GS series 3-pole 30A Compact UL fuse-switch disconnectors (including GS1DDU and GS1DU models). This precise compatibility guarantees zero mechanical play and a seamless fit, eliminating the risk of costly mismatch downtime during installation.
- Built with a rugged NEMA 4/4X degree of protection, this heavy-duty pistol handle completely seals out dust, water ingress, and corrosive agents when door-mounted. This premium environmental rating ensures reliable, long-term performance and uninterrupted electrical control inside demanding food processing plants, chemical facilities, and outdoor enclosures.
- This front-mounting external handle acts as the operational interface and must be paired with a separate operating shaft (such as the TeSys GS2AE series) to bridge the distance to the interior disconnect switch. By offering interchangeable shaft lengths separately, it provides industrial technicians the flexibility to adapt the switch mechanism to various enclosure depths without purchasing unnecessary hardware.
- Designed to manage demanding industrial control setups, this mechanical actuator is built to maintain system integrity alongside disconnects rated for high short-circuit performance up to 100 kA. The 2-position (I-O) rotary action delivers positive tactile feedback to the facility electrician, ensuring swift and decisive contact separation when isolating low-voltage motor circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Tunisia, United States
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- GS2 handle
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- No
- Handle Color
- red
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Exclusion RationaleProduct/component not in scope – not electric/electronic device
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGS2AH
MarkingO-I
Product Or Component Typerotary handle
Range Of ProductTeSys
Rotary Handle Padlockingwith
Type Of Operating Handleexternal frontal
Handle Front Plate Coloryellow
Package Weight(Lbs)220.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- rotary handle
Range Of ProductTeSys
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
