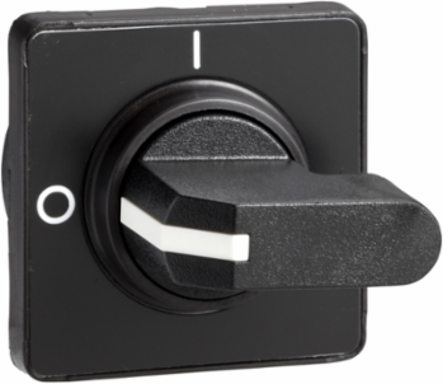

Schneider Electric KAC1BZ TeSys VARIO / Mini VARIO - front and black rotary handle - without padlocking
- MPN: KAC1BZ
- PPN: SCH-KAC1BZ
CAD
$22.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KAC1BZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a black & grey operator, a 45x45mm front plate, single fixing, for main switch usage. KAC1BZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a black & grey operator, a 45x45mm front plate and single fixing. It is intended for main switch usage, ensures NEMA type 12 / IP65 protection and is not padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. Black handle with 45x45mm grey plate for main switch applications. NEMA type 12 handle operator / ensure IP65 protection. Not padlockable.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorblack
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0062766908887646735, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0067851313583007266, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-09
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Base Dimension
- 45 x 45 mm
- Device Short Name
- KAC1
- Marking
- 0 - 1
- Product Or Component Type
- rotary handle
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Handle Color
- black
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2023-11-14
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Width Nominal
- 45 mm
- Package Weight(Lbs)
- 61.0 g
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.13101062045835662
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.27891112353269987
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1851
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Compatibility CodeKAC
Fixing Modehole 22.5 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
Rotary Handle Padlockingwithout
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorblack
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 175A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Height Nominal45 mm
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- V02...V2, VN12, VN20
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint0.42298356623812183
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Verification Date2023-11-14
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rotary handle
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
