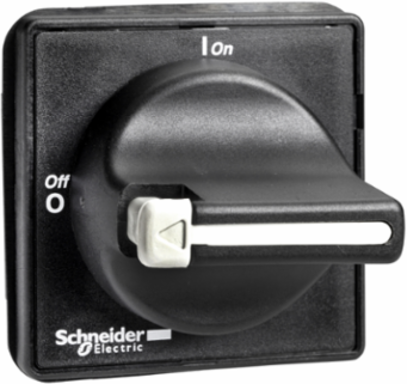

Schneider Electric KBF1PZ TeSys VARIO / Mini VARIO - front and black rotary handle - without padlocking
- MPN: KBF1PZ
- PPN: SCH-KBF1PZ
- UNSPSC: 39122233
CAD
$21.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
KBF1PZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a black & grey operator, a 60x60mm front plate, 4 screws fixing, for main switch usage. KBF1PZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a black & grey operator, a 60x60mm front plate and 4 screws fixing. It is intended for main switch usage, ensures NEMA type 12 / IP65 protection and is not padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. Black handle with 60x60mm grey plate for main switch applications. NEMA type 12 handle operator / ensure IP65 protection. Not padlockable.
Features
- High protection degree of waterproof and dustproof for harsh environment
- It is suitable for 2 operation methods: directly on switch body or through a shaft extension
- It is Green Premium product as it is environmentally friendly
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Weight | 45 g |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase A4 | 0.00876900454767069, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.003945486139455288, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-26 |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Base Dimension | 60 x 60 mm |
| Device Short Name | KBF1 |
| Marking | 0 - 1 |
| Product Or Component Type | rotary handle |
| Returnability | No |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Handle Color | black |
| Database Version | 2023-02 |
| Height Nominal | 60 mm |
| Nbr. Of Units In Pkg. | 1 |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 57 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.11933299362222913 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.2842575571514439 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1851 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Compatibility Code | switch operator |
| Fixing Mode | by 4 screws |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Rotary Handle Padlocking | without |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Handle Front Plate Color | black |
| Data Source | extrapolated product |
| Width Nominal | 60 mm |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Product Compatibility | VN12, VN20, V02...V2 |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006EN |
| Ip Degree Of Protection | IP65 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2211006EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.41630504146079905 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | rotary handle |
|---|
ETIM
| ETIM 8 | EC000229 |
|---|---|
| ETIM 10 | EC000229 |
| ETIM 9 | EC000229 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
