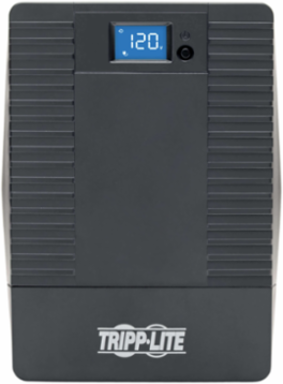

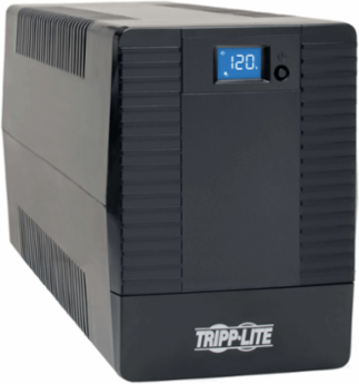

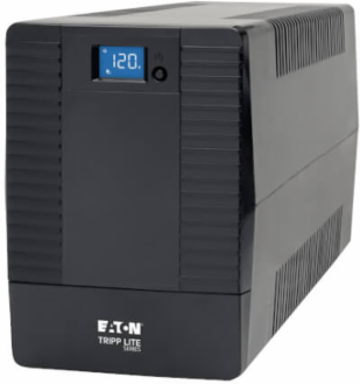

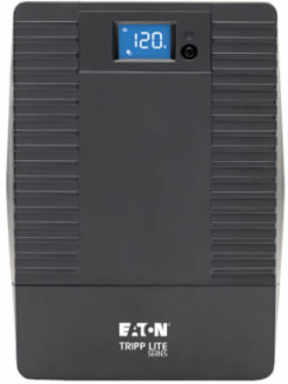

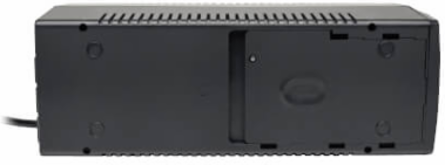

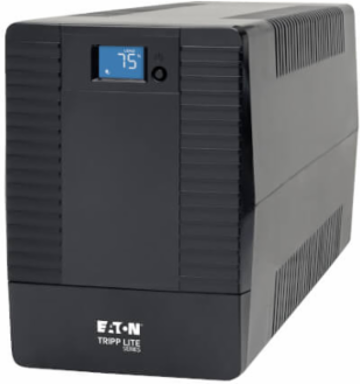

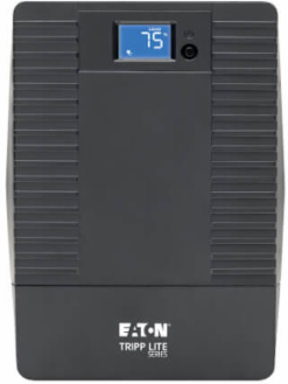

Tripp Lite OMNIVS1500LCD 1440VA 900W Line-Interactive UPS - 8 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Serial, LCD, Tower
Tripp Lite OMNIVS1500LCD 1440VA 900W Line-Interactive UPS - 8 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Serial, LCD, Tower
- MPN: OMNIVS1500LCD
- UPC: 037332214102
- PPN: TRP-OMNIVS1500LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$440.48/ EA
Description
1440VA 900W Line-Interactive UPS - 8 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Serial, LCD, Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
- 1440VA/900W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- 8 NEMA 5-15R Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- Combats Line Noise That Can Harm Equipment
- Designed for High Efficiency to Help You Save Money and Protect the Environment
- Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Compact Housing Compatible with Easy Desktop Installation
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 2 min. (900w)
- DC System Voltage (VDC)
- 12
- Battery Access
- Battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)6 min. (450w)
Battery Recharge Rate (Included Batteries)8 hours (10% to 90%)

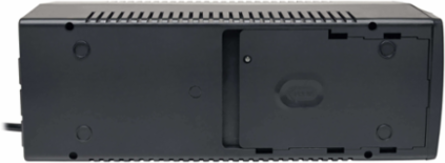

Battery Replacement DescriptionReplaceable internal batteries (see manual)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; RETIE (Colombia)
Physical
- Cooling Method
- Fan
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 191
- Shipping Dimensions (hwd / in.)
- 11.70 x 9.30 x 19.50
- UPS Power Module Dimensions (hwd, in.)
- 7.5 x 5.5 x 15
- UPS Power Module Weight (lbs.)
- 24.3
Installation Form Factors Supported with Included AccessoriesTower
Primary UPS Depth (mm)381
Primary UPS Width (mm)140
UPS Housing MaterialABS
UPS Power Module Weight (kg)11.02
User Interface, Alerts & Controls
- Front Panel LCD Display

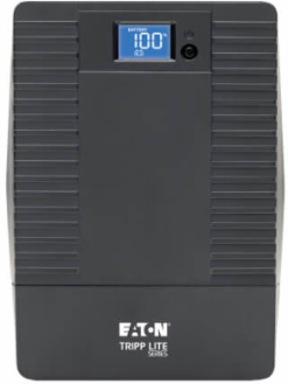

- Touchscreen LCD reports input voltage, output voltage, load percentage, battery charge percentage and overload status
- Audible Alarm
- UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
SwitchesPower off/on switch
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 18%
Overvoltage CorrectionInput voltages between 128 and 149 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1440
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- 120V (+6%/-12%)
- UPS Output Receptacles (Surge Suppression Only)

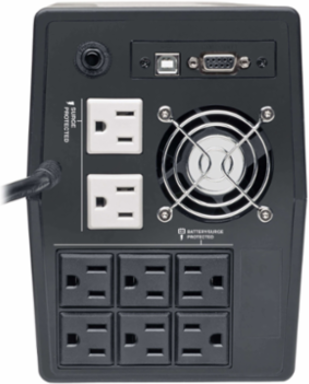

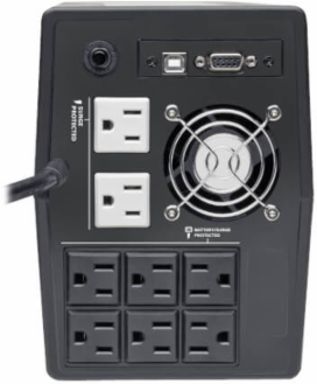

- 6 UPS outlets, 2 surge-only outlets
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) 5-15R
Output Watt Capacity (Watts)900
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)120V (±10%)
Output AC Waveform (AC Mode)Pure sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB and Serial interface cables included
Communications InterfaceDB9 Serial; USB (HID enabled)
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >95%
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)14
Audible Noise<50dB @ 1m front side
Overview
- UPC Code
- 037332214102
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)89
