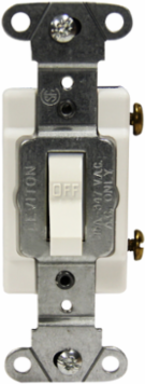

Leviton 18201-CW Single-Pole Toggle Switch, Commercial Specification Grade, Framed, Canadian, 15 Amp, 347 Volt AC, Side Wire, White
Leviton 18201-CW Single-Pole Toggle Switch, Commercial Specification Grade, Framed, Canadian, 15 Amp, 347 Volt AC, Side Wire, White
- MPN: 18201-CW
- PPN: LEV-18201-CW
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$16.00/ EA
Description
Single-Pole Toggle Switch, Commercial Specification Grade, Framed, Canadian, 15 Amp, 347 Volt AC, Side Wire, White
Specifications
Standards and Certifications
- Amperage
- 15 A
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- HP Rating
- 1/2HP-120V 2HP-240V-277V-347V
- Color
- White
- Endurance
- 50,000 cycles minimum
- Feature
- Canadian - Framed
- Body Material
- Thermoplastic
- Max. Amperage
- 12 Amp
- Voltage
- 347 VAC
- CSA C22.2 No. 111
- File #152105
- UL Standard
- UL20
Warranty10-Year Limited
Dielectric VoltageWithstands 1500V for 1 minute
UL Fed Spec WS896EFile #E7458
Temperature RiseMaximum 30 degrees C rise
Strap MaterialSteel
ANSIC-73
Standards and CertificationsUL/CSA
GroundingGrounding
TerminationSide Wire
Actuator MaterialThermoplastic
Material Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Screws
- Brass 8-32
- Strap Material
- Steel
- Torque Range
- 12-14 inch pounds
- Termination
- Side Wire
- Contact Material
- Silver Alloy
Terminal Accom.14-#10 AWG back wired; #14-#12 AWG side wired
Cover MaterialThermoplastic
Base MaterialThermoplastic
TogglePolycarbonate
Terminal IDBrass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Mechanical Specifications
- Function
- Single-Pole
- Product ID
- Ratings are permanently marked on device
- Torque Range
- 12-14 inch pounds
- Color
- White
- Device Type
- Toggle Switch
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Feature 3Framed
Terminal Accom.14-#10 AWG back wired; #14-#12 AWG side wired
Feature 4Canadian
GradeCommercial Specification Grade
TerminationSide Wire
Product Features
- Feature 3
- Framed
- Feature 4
- Canadian
- UL Fed Spec WS896E
- File #E7458
- Grade
- Commercial Specification Grade
- Device Type
- Toggle Switch
- CSA C22.2 No. 111
- File #152105
FunctionSingle-Pole
ColorWhite
Country Of OriginPlease Contact Customer Service.
ANSIC-73
UL StandardUL20
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Cover Material
- Thermoplastic
- Toggle
- Polycarbonate
- Operating Temperature
- -40°C to 65°C
Terminal ScrewsBrass 8-32
Strap MaterialSteel
Base MaterialThermoplastic
Contact MaterialSilver Alloy
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Voltage
- 347 VAC
FlammabilityRated V-2 per UL 94
Temperature RiseMaximum 30 degrees C rise
Operating Temperature-40°C to 65°C
Overload UL20 Test100 cycles of OL at 4.8 times rated current
