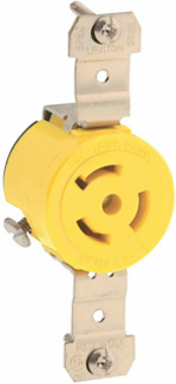

Leviton 45CM-60 15 Amp Locking Receptacle NEMA L6-15R, 250 Volt, Industrial Grade, Nylon, Yellow
- MPN: 45CM-60
- UPC: 078477106662
- PPN: LEV-45CM-60
CAD
$54.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle,Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. For use in marine and industrial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Material Specifications
| Base Material | Nylon |
|---|---|
| Face Material | Nylon |
| Line Contacts | Nickel-Plated Brass .040 Thick |
| Terminal Screws | Nickel-Plated Brass 10-32 |
| Color | Yellow |
|---|---|
| Grounding Screw | Nickel-Plated Brass 8-32 |
| Strap Material | Nickel-Plated Brass |
| Yoke | Nickel-Plated Brass .050 Thick |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Termination | Side |
| Screw Terminal Torque | 10-14 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Body Material | Nylon |
|---|
Environmental Specifications
| Environment | Corrosive |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-0 per UL 94 |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1-1/2 HP |
|---|
Accessories
