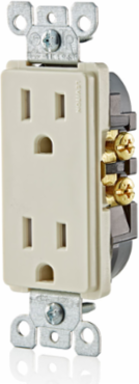

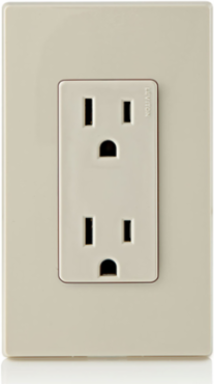

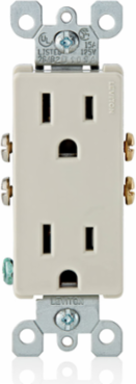

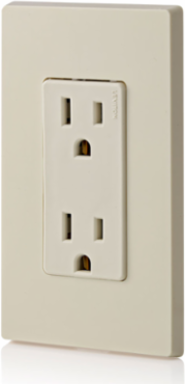

Leviton 5325-T 15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond
Leviton 5325-T 15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond
- MPN: 5325-T
- UPC: 078477274934
- PPN: LEV-5325-T
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.20/ EA
Description
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Light Almond
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Limited 2-year warranty
- EASY - Quick wire push-in and side wiring for easy installation
- DURABLE - Impact-resistant thermoplastic nylon construction
- CONVENIENT - Shallow depth for maximum wiring room
- COMPATIBLE - For use with Leviton Decora wallplates
Specifications
Product Features
- Amperage
- 15 A
- Color
- Light Almond
- Grounding
- Grounding
- Pole
- 2
- Terminal Accom.
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 125 VAC
- Wire
- 3
Body MaterialThermoplastic
Face MaterialThermoplastic
NEMA5-15R
Strap MaterialSteel
TerminationQuickwire Push-In & Side
TypeDuplex Receptacle
Warranty1-Year Limited
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- UL 498
- File E13399
NOMNOM Certified
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
