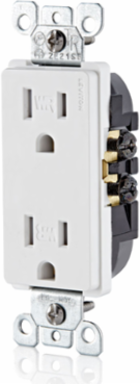

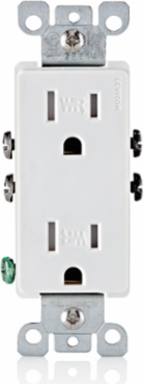

Leviton W5325-T0W 15 Amp Decora Weather and Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-15R
Leviton W5325-T0W 15 Amp Decora Weather and Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-15R
- MPN: W5325-T0W
- UPC: 078477937785
- PPN: LEV-W5325-T0W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$6.04/ EA
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant – White
Features
- UV stabilized thermoplastic construction and extra corrosion protection to withstand exposure to the elements
- QuickWire™ push-in and side wiring for easy installation
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- QuickWire push-in terminals accept #14 AWG solid copper wire only
- Shallow depth for maximum wiring room
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- WR symbol on front of device and TR symbol on strap make it easy to identify and assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- Ideal solution for both outdoor residential and commercial areas, including patios, decks and near pools and hot tubs

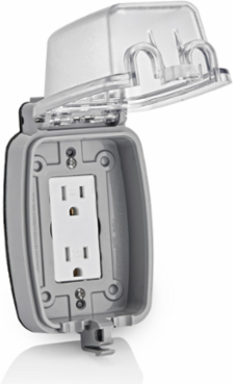

- For outdoor use with Leviton’s code compliant weatherproof covers
- CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
- WEATHER-RESISTANT – UV stabilized thermoplastic construction and extra corrosion protection to withstand the rigors of exposure to the elements
- SAFE – Tamper-Resistant shutters protects from foreign objects being inserted into receptacle to ensure personal safety
- EASY – Quickwire push-in and side wiring for easy installation
- OUTDOOR USE – Must be installed in proper weatherproof enclosure with approved caulk and gaskets
Specifications
Standards and Certifications
- CSA
- C22.2 No. 42: File 152105; Class 6233-01
- NOM
- NOM Certified
NEMA5-15R
UL 498File E13399
Mechanical Specifications
- Termination
- Quickwire Push-In & Side
Torque Range14 - 18 in.-lbs
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Product Features
- Color
- White
- Feature
- Weather and Tamper-Resistant
- Type
- Decora Duplex Receptacle
Device TypeDecora Receptacle
Terminal Accom.Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Weather ResistantYes
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Amperage
- 15 A
- Pole
- 2
GroundingGrounding
Wire3
