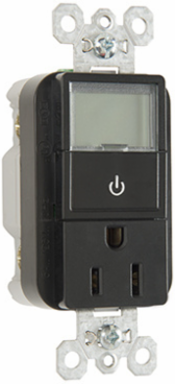

Pass & Seymour PLT26251BK Heavy Duty Timer Receptacle 15A 125V Black, 1.73 Inch Width

MPN: PLT26251BK
UPC: 785007040036
PPN: P-S-PLT26251BK
UNSPSC: 39121406

$130.10

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heavy Duty Timer Receptacle 15A 125V Black, 1.73 Inch Width

Features

Wire Size: #14 - #10 AWG Copper Conductor Only

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Height	2.68 in
Color	Black
Amperage	15.0 A
Number of Poles	Double Pole
Environmental Conditions	UL94 V2
Dielectric Strength	Withstands 2000V minimum
Standard	RoHS; CSA Listed; CulUS; UL Listed; FSUL; FEDSPEC
Voltage	125.0 V
Connection Location	Back and Side
Operating Temperature Max	60.0 °C
Operating Temperature Min	-40.0 °C
Indoor/Outdoor	Indoor
Outlet Type	Energy Saving On/Off
Number of Receptacles	1.0

Depth	1.25 in
Width	1.73 in
Product Line	Pass & Seymour
Application Sector	Commercial
Phase	Single
Special Features	New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
Number of Wires	3.0
Wire Size	14 - 10 AWG
Operating Temperature	-40°-60°C
Features	Plugload; Timer; Brass Mounting Strap
Wall Plate Included	No
NEMA Configuration Code	5-15R
Wire Connection Type	Screw Terminals
Warranty Type	1-Year Limited Warranty
