Pass & Seymour

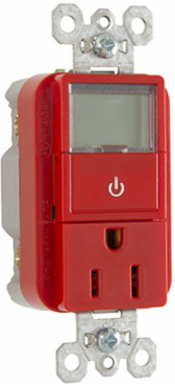

Pass & Seymour PLT26251RED 15A 125V Heavy Duty Red Timer Receptacle, 1.25 Inch Depth, UL Listed

15A 125V Heavy Duty Red Timer Receptacle, 1.25 Inch Depth, UL Listed
  • MPN: PLT26251RED
  • UPC: 785007039771
  • PPN: P-S-PLT26251RED

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$123.89/ EA

Description

New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.

Features

  • Wire Size: #14 - #10 AWG Copper Conductor Only

Specifications

Specifications

Depth
1.25 in
Color
Red
Width
1.73 in
Country of Origin
China
Standard
RoHS
Standard
CulUS
Voltage
125.0 V
Features
Plugload
Number of Wires
3.0
Indoor/Outdoor
Indoor
Wall Plate Included
No
Number of Poles
Double Pole
Features
Brass Mounting Strap
Environmental Conditions
UL94 V2
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
Operating Temperature Min
-40.0 °C
Dielectric Strength
Withstands 2000V minimum
Height2.68 in
Product LinePass & Seymour
PhaseSingle
StandardFSUL
FeaturesTimer
Amperage15.0 A
StandardFEDSPEC
StandardUL Listed
StandardCSA Listed
Wire Size14 - 10 AWG
Number of Receptacles1.0
Application SectorCommercial
NEMA Configuration Code5-15R
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Special FeaturesNew requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
