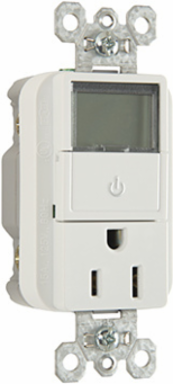

Pass & Seymour PLT26251W Heavy Duty 15A Plug Load Timer Receptacle, 125V, White, 1.25 Inch Depth
Pass & Seymour PLT26251W Heavy Duty 15A Plug Load Timer Receptacle, 125V, White, 1.25 Inch Depth
- MPN: PLT26251W
- UPC: 785007040128
- PPN: P-S-PLT26251W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$123.89/ EA
Description
New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.
Features
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.25 in
- Height
- 2.68 in
- Product Line
- Pass & Seymour
- Country of Origin
- China
- Standard
- RoHS
- Standard
- CulUS
- Voltage
- 125.0 V
- Features
- Plugload
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Features
- Brass Mounting Strap
- Environmental Conditions
- UL94 V2
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
ColorWhite
Width1.73 in
PhaseSingle
StandardFSUL
FeaturesTimer
Amperage15.0 A
StandardFEDSPEC
StandardUL Listed
StandardCSA Listed
Wire Size14 - 10 AWG
Number of Receptacles1.0
Application SectorCommercial
NEMA Configuration Code5-15R
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Special FeaturesNew requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
