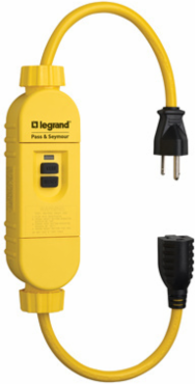

Pass & Seymour 2097PC2M Portable 2-Foot In-Line GFCI, Manual Reset, 1 lb, Polycarbonate, Yellow
- MPN: 2097PC2M
- UPC: 785007381696
- PPN: P-S-2097PC2M
CAD
$123.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Portable 2-Foot In-Line GFCI, Manual Reset, 1 lb, Polycarbonate, Yellow
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Length
- 27.75 in
- Finish
- Matte
- Width
- 2.0 in
- Amperage
- 20.0 A
- Outlet Type
- GFCI
- Number of Wires
- 3.0
- Outlet Type
- Self-Test
- Indoor/Outdoor
- Outdoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20P
- Application Sector
- Residential
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Max
- 66.0 °C
- Operating Temperature
- -35°-66°C
ColorYellow
Weight1.0 lb
Product LinePass & Seymour
Country of OriginChina
Voltage125.0 V
Seismic TestedNo
FeaturesManual Reset
FeaturesPortable GFCI
Is Tamper-ResistantNo
Is Weather ResistantNo
Application SectorCommercial
NEMA Configuration Code5-20R
Connection LocationTop and Bottom
Application SectorMulti-Dwelling Unit
Operating Temperature Min-35.0 °C
