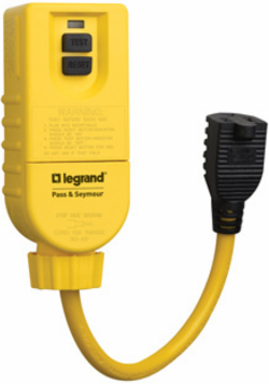

Pass & Seymour 1597CS1M Portable 15A Right Angle Self-Test GFCI Plug with 1-Foot Cord Set, Manual Reset
- MPN: 1597CS1M
- UPC: 785007381580
- PPN: P-S-1597CS1M
CAD
$83.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Plug this Right Angle Portable GFCI (Manual Reset) into a standard outlet to provide GFCI protection when powering portable equipment such as drills, saws, pressure washers, power painters, etc. outdoors, on construction sites, or anywhere a GFCI-protected receptacle might not be accessible. This model includes 1-Foot Cord Set for easier connectivity.Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.75 in |
|---|---|
| Height | 4.0 in |
| Weight | 1.0 lb |
| Width | 2.0 in |
| Amperage | 15.0 A |
| Outlet Type | GFCI |
| Number of Wires | 3.0 |
| Features | Manual Reset |
| Features | Portable GFCI |
| Is Tamper-Resistant | No |
| Is Weather Resistant | No |
| Number of Poles | Double Pole |
| NEMA Configuration Code | 5-15P |
| Application Sector | Residential |
| Operating Temperature Min | -35.0 °C |
| Application Sector | Multi-Dwelling Unit |
| Color | Yellow |
|---|---|
| Finish | Matte |
| Product Line | Pass & Seymour |
| Country of Origin | China |
| Voltage | 125.0 V |
| Seismic Tested | No |
| Features | Right Angle |
| Outlet Type | Self-Test |
| Indoor/Outdoor | Outdoor |
| Wall Plate Included | No |
| Connection Location | Bottom |
| Application Sector | Commercial |
| NEMA Configuration Code | 5-15R |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature | -35°-66°C |
| Operating Temperature Max | 66.0 °C |
