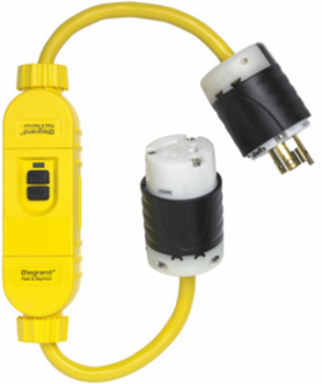

Pass & Seymour 2097TL2M Turnlok Portable 2-Foot In-Line GFCI, Yellow, Manual Reset, 1.4 lb
- MPN: 2097TL2M
- UPC: 785007381719
- PPN: P-S-2097TL2M
CAD
$375.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stay safer on any job, any project with this code-compliant 2-Foot In-Line Portable GFCI (Manual Reset). Designed for use with portable equipment (drills, saws, power painters, etc.), providing protection against electrical shock caused by ground faults.Designed with Legrand's Turnlok connector to lock plugs in place, preventing accidental disconnection for safer, more reliable operation.GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Color
- Yellow
- Weight
- 1.4 lb
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Outlet Type
- GFCI
- Number of Wires
- 3.0
- Outlet Type
- Self-Test
- Indoor/Outdoor
- Outdoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Application Sector
- Residential
- NEMA Configuration Code
- L5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Max
- 66.0 °C
- Special Features
- Turnlok® connector
Length27.75 in
FinishMatte
Width2.0 in
Country of OriginChina
Voltage125.0 V
Seismic TestedNo
FeaturesManual Reset
FeaturesPortable GFCI
Is Tamper-ResistantNo
Is Weather ResistantNo
Application SectorCommercial
NEMA Configuration CodeL5-20P
Connection LocationTop and Bottom
Application SectorMulti-Dwelling Unit
Operating Temperature Min-35.0 °C
Operating Temperature-35°-66°C
