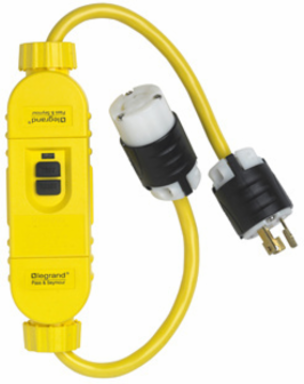

Pass & Seymour 1597TL2M Turnlok Portable 2-Foot In-Line GFCI, 15A, Manual Reset, 1.0 lb
- MPN: 1597TL2M
- UPC: 785007381672
- PPN: P-S-1597TL2M
- UNSPSC: 39121406
CAD
$136.70
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The perfect option for safely powering portable equipment, outdoors or in, when a GFCI-protected outlet is not accessible. Use this 2-Foot In-Line Portable GFCI (Manual Reset) when plugging in drills, saws, leaf blowers, pressure washers, power painters, etc. for protection against electrical shock caused by ground-faults. Designed with Legrand's Turnlok connector to lock plugs in place, preventing accidental disconnection for safer, more reliable operation. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
- Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults.
- GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 27.75 in |
| Weight | 1.0 lbs |
| Finish | Matte |
| Amperage | 15.0 A |
| Indoor/Outdoor | Outdoor |
| Special Features | Turnlok® connector |
| Seismic Tested | No |
| Connection Location | Top and Bottom |
| Number of Poles | Double Pole |
| Voltage | 125.0 V |
| Operating Temperature | -35°-66°C |
| Operating Temperature Max | 66.0 °C |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Depth | 1.75 in |
|---|---|
| Width | 2.0 in |
| Color | Yellow |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Is Tamper-Resistant | No |
| Is Weather Resistant | No |
| Outlet Type | GFCI; Self-Test |
| Operating Temperature Min | -35.0 °C |
| Wall Plate Included | No |
| Features | Portable GFCI; Manual Reset |
| Number of Wires | 3.0 |
| NEMA Configuration Code | L5-15P; L5-15R |
