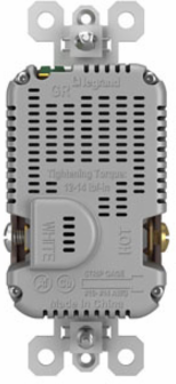

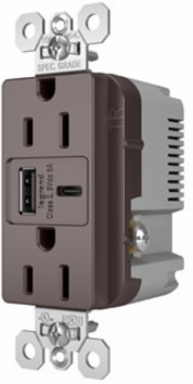

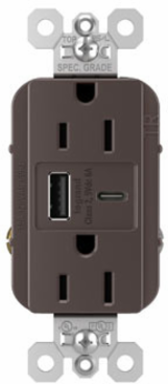

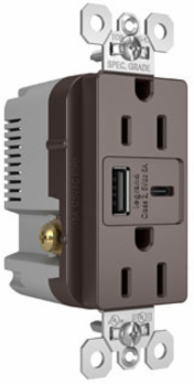

Pass & Seymour TR15USBAC6 15A 125V Tamper-Resistant Duplex Receptacle with USB C/C Ports, Brown 1.425 Inch Depth
- MPN: TR15USBAC6
- UPC: 785007209709
- PPN: P-S-TR15USBAC6
- UNSPSC: 39121406
CAD
$83.85
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A 125V Tamper-Resistant Duplex Receptacle with USB C/C Ports, Brown 1.425 Inch Depth
Features
- Protects children: patented shutter system helps prevent improper insertion of foreign objects
- Meets National Electrical Code® Tamper Resistant requirement
- Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
- It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
- High-impact-resistant thermoplastic construction with tri-drive terminal screws
- Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Brown |
| Amperage | 15.0 A |
| Indoor/Outdoor | Indoor |
| Number of USBs | 2.0 |
| Outlet Type | USB-Charging; Tamper-Resistant |
| USB Wattage | 15.0 W |
| Wall Plate Included | No |
| Wire Size | 14 - 10 AWG |
| Number of Gangs | 1 |
| Is Tamper-Resistant | Yes |
| NEMA Configuration Code | 5-15R |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| USB Amperage | 6.0 A |
| Features | USB-A Charging; USB-C Charging |
| Warranty Type | 1-Year Limited Warranty |
| Connection Location | Side Only |
| Number of Wires | 3.0 |
| Wire Connection Type | Screw Terminals |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Voltage | 125.0 V |
