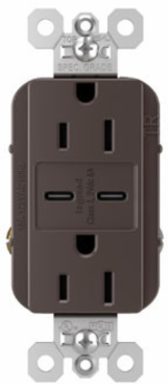

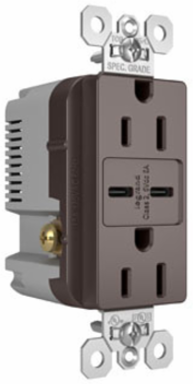

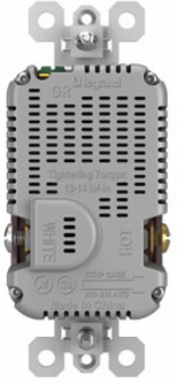

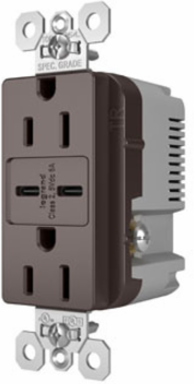

Pass & Seymour TR15USBCC6 15A 125V Tamper-Resistant Receptacle, Brown with 2 USB Type-C Ports

MPN: TR15USBCC6
UPC: 785007209761
PPN: P-S-TR15USBCC6
UNSPSC: 39121406

$86.62

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15A 125V Tamper-Resistant Receptacle, Brown with 2 USB Type-C Ports

Features

Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port
Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations
With (2) USB Type-C ports to charge the latest mobile devices
USB Type-C ports carry a minimum rating of 10,000 insertions
Stainless steel auto-ground clips assure positive ground
Slim design allows for installation in standard depth wall boxes
Multiple color options available
Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies
Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Height	2.677 in
Color	Brown
Product Line	Pass & Seymour
Number of USBs	2.0
Number of Receptacles	2.0
Number of Gangs	1
Is Tamper-Resistant	Yes
USB Wattage	15.0 W
Number of Poles	Double Pole
Wall Plate Included	No
Wire Size	14 - 10 AWG
Outlet Type	Tamper-Resistant; USB-Charging
Application Sector	Residential; Multi-Dwelling Unit; Commercial

Depth	1.425 in
Width	1.693 in
Finish	Matte
Amperage	15.0 A
USB Amperage	6.0 A
NEMA Configuration Code	5-15R
Voltage	125.0 V
Number of Wires	3.0
Indoor/Outdoor	Indoor
Warranty Type	1-Year Limited Warranty
Features	USB-C Charging
Connection Location	Side Only
Wire Connection Type	Screw Terminals
