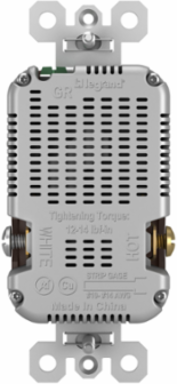

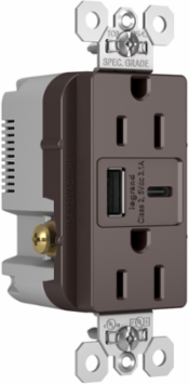

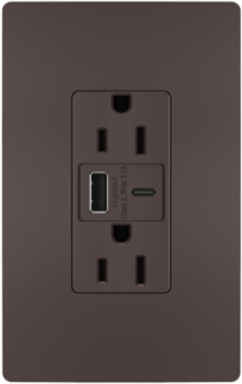

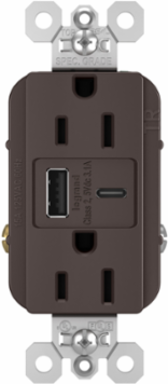

Pass & Seymour TR15USBAC 15A Tamper-Resistant Duplex Receptacle with USB A/C Charging Ports, Brown, 1-1/2 Inch Depth, 2-5/8 Inch Height, 1-7/10 Inch Width
- MPN: TR15USBAC
- UPC: 785007181432
- PPN: P-S-TR15USBAC
- UNSPSC: 39121406
CAD
$74.56
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A Tamper-Resistant Duplex Receptacle with USB A/C Charging Ports, Brown, 1-1/2 Inch Depth, 2-5/8 Inch Height, 1-7/10 Inch Width
Features
- Protects children: patented shutter system helps prevent improper insertion of foreign objects
- Meets National Electrical Code® Tamper-Resistant requirement
- Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
- It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
- High-impact-resistant thermoplastic construction with tri-drive terminal screws
- Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Brown |
| Amperage | 15.0 A |
| Indoor/Outdoor | Indoor |
| Number of USBs | 2.0 |
| Outlet Type | Tamper-Resistant; USB-Charging |
| Standard | FEDSPEC |
| Voltage | 125.0 V |
| Wire Size | 14 - 10 AWG |
| Number of Gangs | 1 |
| USB Wattage | 15.0 W |
| Application Sector | Multi-Dwelling Unit; Commercial; Residential |
| Wall Plate Included | No |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| USB Amperage | 3.1 A |
| Features | USB-C Charging; USB-A Charging |
| Connection Location | Side Only |
| Is Tamper-Resistant | Yes |
| Number of Wires | 3.0 |
| Warranty Type | 1-Year Limited Warranty |
| Wire Connection Type | Screw Terminals |
| NEMA Configuration Code | 5-15R |
