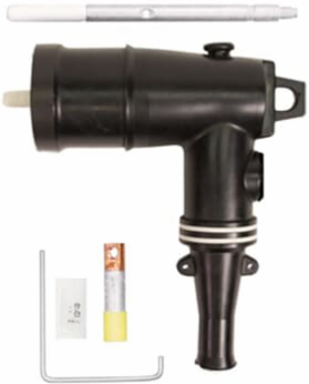

Thomas & Betts 161LR-C 15KV 200A LB ELBOW C

MPN: 161LR-C
UPC: 075114236201
PPN: T-B-161LR-C

$188.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.805 inch to 1.060 inch. Housing with Elbow Probe, no Lug.

Specifications

Additional Information

Application	15kV, 200 Amp Loadbreak Connection.
Color	Black
Insulation Material	Yes, EPDM Rubber
Number of Batteries	0
Product Type	Loadbreak Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes.
Temperature Range	-40 to +65 °C
Voltage Rating	15 kV

Brand / Label	Elastimold
Current Rating	200 A
Material	Housing - EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Cable Insulation Diameter 0.805 inch to 1.060 inch.
Standards	ANSI/IEEE Standard 386
UPC	075114236201

Dimensions

Product Net Weight	1 lb453.515 g

Container Information

Package Level 2 Units	1 piece
Package Level 2 Height	12.5 in318 mm

Package Level 2 Width	19.12 in486 mm
Package Level 2 Depth / Length	10.5 in267 mm

Classifications

UNSPSC	39121421
IDEA Granular Category Code (IGCC)	4586 >> Electrical connector assembly

WEEE Category	Product Not in WEEE Scope

Ordering

EAN	0075114236201

Customs Tariff Number	8535908020
