Thomas & Betts 161LR-D5230 15KV 200A LB ELBOW D5230
- MPN: 161LR-D5230
- UPC: 075114321532
- PPN: T-B-161LR-D5230
- UNSPSC: 39121421
CAD
$205.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

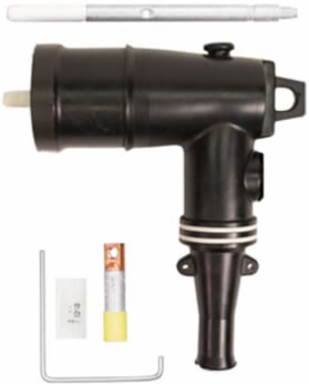

15kV, 200 Amp, Loadbreak Elbow, without Test Point, Cable Insulation Diameter .890-1.220 inches, Bi-Medal Lug, Conductor Size #1 AWG Stranded Compressed or 1/0 AWG Compact/Solid. No Sealing Kit.
Specifications
Additional Information
- Application
- 15kV, 200 Amp Loadbreak Connection.
- Color
- Black
- Effective Date
- 20161027
- Includes
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeCable Insulation Diameter 0.890 inch to 1.220 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
