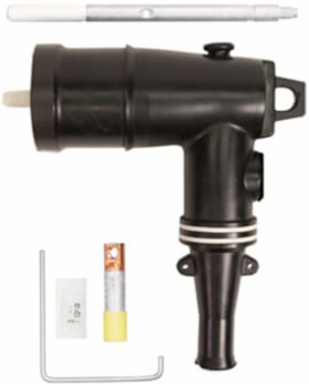

Thomas & Betts 161LR-D5240 15KV 200A LB ELBOW D5240

MPN: 161LR-D5240
UPC: 075114236294
PPN: T-B-161LR-D5240
UNSPSC: 39121421

$204.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Color	Black
Effective Date	20150414
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Includes	(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) Installation Instructions
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 kV
