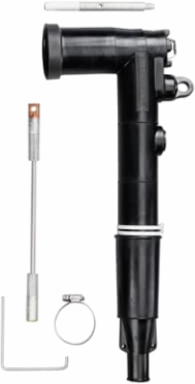

15KV REPAIRELBOW 200A W-SEALING KIT
Thomas & Betts

Thomas & Betts 168RLR-H5220-SG3 15KV REPAIRELBOW 200A W-SEALING KIT

  • MPN: 168RLR-H5220-SG3
  • UPC: 075114405997
  • PPN: T-B-168RLR-H5220-SG3
  • UNSPSC: 39121421

CAD

$1001.02

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size #2 Compressed or Stranded AWG or #1 Solid or Compact AWG. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.

Features

  • Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Cable Insulation Diameter 0.850 inch to 1.050 inch
Material
Housing - EPDM Rubber
Amperage Rating
200 A
Temperature Rating
-40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned for connecting to and operating 15kV Class, 95kV BIL apparatus
StandardANSI/IEEE Standard 386
Conductor Range#2 STR/COMPR AWG , #1 SOL/COMPT AWG
Voltage Rating15 kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
