Tripp Lite PDUMH15HVNET 2.3-2.9kW Single-Phase Switched PDU with LX Platform network interface, 200-240V (8 C13), C14, 200-240V Input, 6.5ft Cord, 1U Rack-Mount, TAA
Tripp Lite PDUMH15HVNET 2.3-2.9kW Single-Phase Switched PDU with LX Platform network interface, 200-240V (8 C13), C14, 200-240V Input, 6.5ft Cord, 1U Rack-Mount, TAA
- MPN: PDUMH15HVNET
- UPC: 037332139276
- PPN: TRP-PDUMH15HVNET
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1088.92/ EA
Description
2.3-2.9kW Single-Phase Switched PDU with LX Platform network interface, 200-240V (8 C13), C14, 200-240V Input, 6.5ft Cord, 1U Rack-Mount, TAA
Features
- Switched 10/12A 200-240V PDU; 1U horizontal rackmount
- LX Platform network interface
- Auto Probe for Autonomous Device Management
- Visual current meter; reversible housing

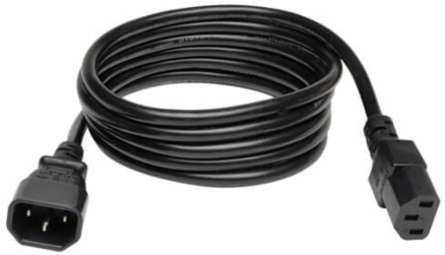

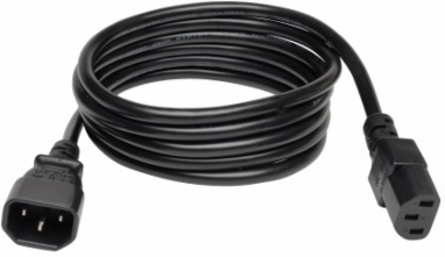

- C14 inlet; 6.5ft / 2m C14 power cable included
- 8 C13 switched outlets with cord retention brackets
- Temperature, humidity and contact-closure monitoring options
- TAA Compliant
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL/CAN 60950-1 (USA, Canada), FCC / EN Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

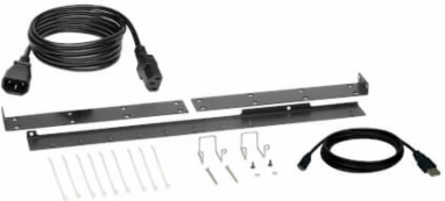

- 1U rackmount. Includes mounting accessories for 2-4 post racks
- Minimum Required Rack Depth (inches)
- 17.1
- Shipping Dimensions (hwd / in.)
- 5.70 x 20.70 x 23.00
- Unit Dimensions (hwd / in.)
- 1.75 x 17.3 x 14.8
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)13.20
Unit Weight (lbs.)9.00
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital display reports total PDU output current in amps
- Switches
- n/a
Front Panel LEDs8 LEDs display power on-off status for each output receptacle
Input
- PDU Input Voltage
- 208; 230
- Maximum Input Amps
- 15
- PDU Plug Type
- IEC-320 C14
- Input Cord Length (ft.)
- 6.5
Recommended Electrical Service12A 208V; 10A 230V
Maximum Input Amps DetailsAgency de-rated to 12A at 200, 208, 220 & 240V; Agency de-rated to 10A at 230V
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) C13
- Overload Protection
- n/a
Output Capacity Details2.5kW (208V), 2.3kW (230V) / 12A (10A CE) total capacity
Output Nominal Voltage208; 230
Customized Load Management Receptacles8 individually switched output receptacles
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332139276
PDU TypeSwitched
Special Features
- TVSS Grounding
- Back panel grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
