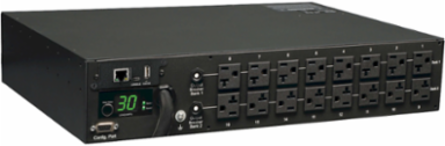

Tripp Lite PDUMNH30 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMNH30 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. Cord, 2U Rack-Mount, TAA
- MPN: PDUMNH30
- UPC: 037332157652
- PPN: TRP-PDUMNH30
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1574.61/ EA
Description
2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. Cord, 2U Rack-Mount, TAA
Features
- 16 NEMA 5-15/20R outlets with cord retention brackets
- Digital readout monitors current to prevent circuit overload
- Built-in LX Platform network interface reports voltage, frequency and load level
- Temperature, humidity and contact-closure monitoring options
- L5-30P input with 10 ft. (3 m) cord
- 2-year limited warranty
- 2.9kW Single-Phase Monitored PDU with LX Platform Interface
- Built-In LX Platform Network Management Interface Card
- Digital Load Meter
- Optimized for Demanding Applications
- Versatile Installation Options
- TAA-Compliant for GSA Schedule Purchases
- 2-Year Warranty and Environmentally Responsible Design
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA, Canada), FCC Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Material of Construction
- Metal
- PDU Form Factor
- Horizontal (2U)
- Shipping Weight (lbs.)
- 16.90
- Unit Weight (lbs.)
- 13.8
Minimum Required Rack Depth (inches)17.5
Shipping Dimensions (hwd / in.)8.00 x 21.00 x 17.00
Unit Dimensions (hwd / in.)3.5 x 17.5 x 12.5
User Interface, Alerts & Controls

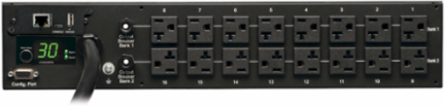

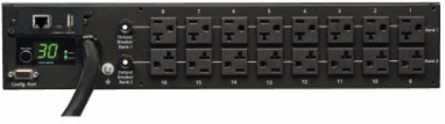

- Front Panel LCD Display
- Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1, Bank 2 and Banks 1&2 combined)
- Switches
- Toggle switch prompts local display of power consumption in three segments (1) Breakered load bank 1, (2) Breakered load bank 2, (3) Breakered banks 1&2 combined
Front Panel LEDsFront panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 current level is reported when the Bank 1 LED is on; Bank 2 current level is reported when the Bank 2 LED is on; Total output of both banks is reported when both LEDs are on
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L5-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 120V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) 5-15/20R
- Overload Protection
- Two 20A breakers protect 8 outlets each
Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
Output Nominal Voltage100; 120; 127
Customized Load Management Receptaclesn/a
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332157652
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
