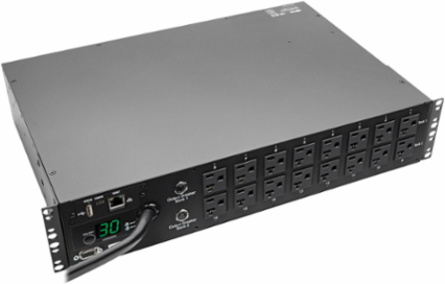

Tripp Lite PDUMH30NET 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), 10 ft. Cord with L5-30P, 2U, TAA

2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), 10 ft. Cord with L5-30P, 2U, TAA - https://media.province-electric.com/tripplite/2020q1/2e838f478a31c5d96ebcd30cbf4617c770e0517b-medium.png

2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), 10 ft. Cord with L5-30P, 2U, TAA

Tripp Lite PDUMH30NET 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), 10 ft. Cord with L5-30P, 2U, TAA

MPN: PDUMH30NET
UPC: 037332139313
PPN: TRP-PDUMH30NET

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1720.57/ EA

Qty:

Loading add to cart quantity...

Description

2.9kW switched PDU distributes, monitors and manages single-phase power in an IT environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

2.9kW 120V single-phase 2U rack-mount switched PDU
16 controllable NEMA 5-15/20R outlets in 2 load banks
Built-in Java-free LX Platform interface for 24/7 remote access
Digital ammeter for on-site load monitoring in real time
NEMA L5-30P input with 10 ft. AC power cord
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year limited warranty
Distributes, Monitors and Manages Network-Grade AC Power
16 Switched NEMA 5-15/20R Outlets Distribute AC Power
Digital Ammeter
Built-In LX Platform Interface
Broad Communications Compatibility
Reduce Service Calls with Auto Probe Autonomous Device Management
Essential Safety Features
Easy 2U Installation in EIA-Standard 19 in. Racks
TAA-Compliant

Specifications

Certifications

Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

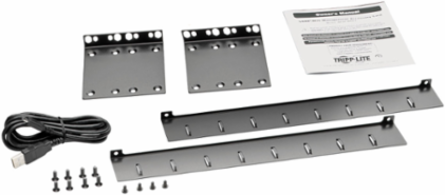

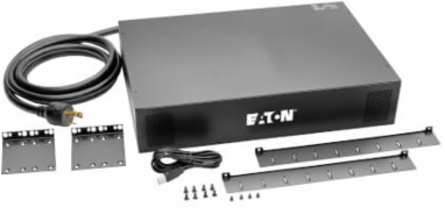

Form Factors Supported: 2U rackmount. Includes 2U mounting accessories for 4 post and 2 post rack installation

Minimum Required Rack Depth (inches): 17.5

Shipping Dimensions (hwd / in.): 7.80 x 16.80 x 19.80

Unit Dimensions (hwd / in.): 3.5 x 17.5 x 12.5

Material of ConstructionMetal

PDU Form FactorHorizontal (2U)

Shipping Weight (lbs.)17.30

Unit Weight (lbs.)13.8

User Interface, Alerts & Controls

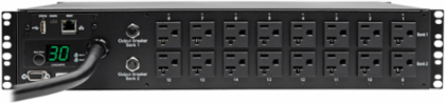

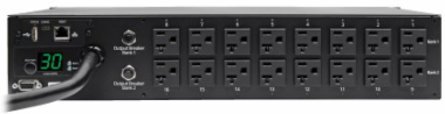

Front Panel LCD Display: Digital current display with toggle switch reports output load level in 3 segments (Bank 1: Outlets #1-8, Bank 2: Outlets #9-16, Bank 3: All outlets combined)

Switches: Toggle switch advances the digitial display to report output current on Bank 1, Bank 2 or Banks 1&2 combined; WEBCARDLX : Recessed reset switch to reboot or reset network card to factory defaults

Front Panel LEDs16 power availability LEDs confirm power off/on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Bank 1&2 combined); WEBCARDLX: Link/Activity LED (Yellow), Network Speed (Green), LX operational status LED (Green))

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 30

PDU Plug Type: NEMA L5-30P

Input Cord Length (ft.): 10

Recommended Electrical Service30A 120V

Maximum Input Amps DetailsAgency de-rated to 24A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (16) 5-20R

Overload Protection: Two 20A breakers protect 8 outlets each

Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet

Output Nominal Voltage100; 120; 127

Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface

Communications

SNMP Compatibility: Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
