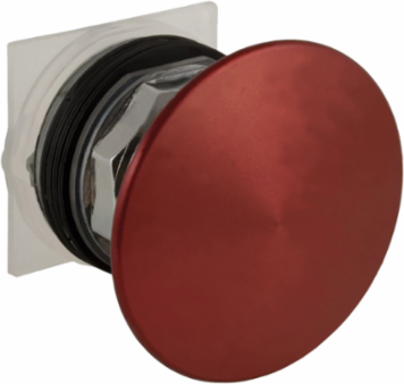

Square D 9001KR9RM95 Harmony Push Button Head, Metal, 60 mm, Red, IP66, 2 Positions
- MPN: 9001KR9RM95
- UPC: 785901981480
- PPN: SCH-9001KR9RM95
CAD
$206.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This robust push button head from Schneider Electric integrates seamlessly into automation and control systems, offering reliable performance with its durable metal construction. Designed with a striking red color, it features a 60 mm diameter and is rated IP66, ensuring excellent protection against dust and water ingress, making it suitable for demanding environments. The button offers two distinct positions, providing versatile operation options for various applications in your machinery and control panels. Ideal for those seeking dependable pilot devices, this push button head stands out for its durability and functional design.
Documentation & Downloads
Specifications
Additional
- Type of Operator
- push-pull
- IP Degree of Protection
- IP66 IEC 60529
- Overvoltage Category
- Class II IEC 61140
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Mounting Diameter
- 30 mm (1.18 in)
- CAD Overall Height
- 60 mm (2.36 in)
- Operator Profile
- red mushroom Ø 60 mm, unmarked, screw-on metal with set screw
- Bezel Material
- metal
- Standards
- IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Mercury Free
- Yes
- Country of Origin
- MX
Mechanical Durability5,000,000 cycles
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 6, 12, 13
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Size30 mm
CAD Overall Width60 mm (2.36 in)
CAD Overall Depth74 mm (2.91 in)
Head Materialmetal
Protective TreatmentTC
CertificationsNEMA, UL 508
Shock Resistance50 gn IEC 60068-2-27
RoHS CompliancePro-active compliance (out of EU RoHS scope)
