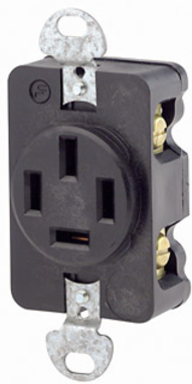

Leviton 7250-FR 20 Amp Straight Blade Flush Mount Receptacle, NEMA 18-20R, 120/208 Volt
- MPN: 7250-FR
- UPC: 078477808733
- PPN: LEV-7250-FR
CAD
$69.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

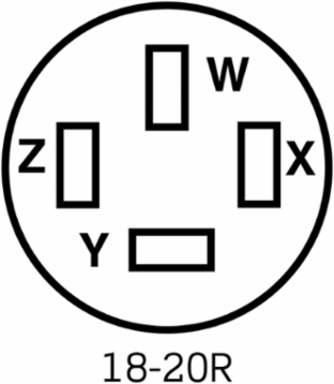

20 Amp, 120/208 Volt, 3Ø, NEMA 18-20R, 4P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-Grounding, , Side Wired, Steel Strap, - Black
Features
- Built of durable thermoplastic, Leviton Power Receptacles — in flush mount, surface mount and panel mount versions — come equipped with heavy-gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton’s wide range of 2.15”-diameter wallplates and mounting hardware is included.
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Strap Material
- Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- Up to 4 AWG
Screw Terminal Torque14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 4
- Voltage
- 120/208 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire4
