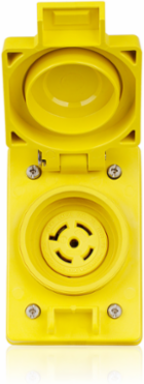

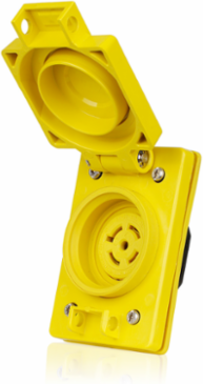

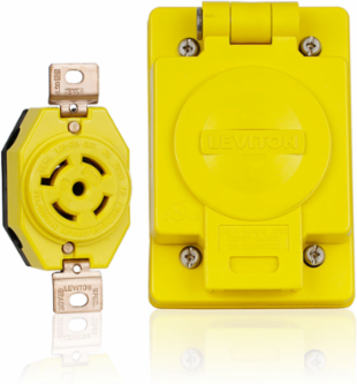

Leviton 67W81 Wetguard Watertight Locking Receptacle 20 Amp 120/208 Volt 3-Phase WYE
- MPN: 67W81
- UPC: 078477067604
- PPN: LEV-67W81
CAD
$195.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

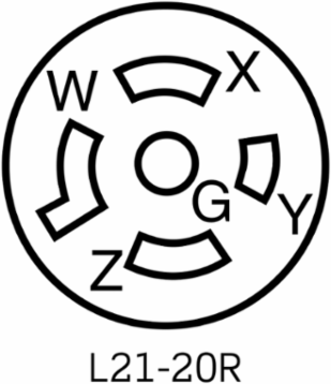

20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399
Material Specifications
- Base Material
- Nylon
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 10-32
Face MaterialNylon
Line ContactsBrass .040 Thick
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-8 AWG
Product Features
- Amperage
- 20 A
- Device Type
- Locking Outlet
- Pole
- 4
- Strap Material
- Nickel-Plated Brass
- Voltage
- 120/208 VAC
- Wire
- 5
ColorYellow
GroundingGrounding
Standards and CertificationsUL/CSA
TerminationBack
WarrantyLimited Lifetime Warranty
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Current Limiting
- Full Rated Current
- Phase
- 3-Phase WYE
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 2 HP
