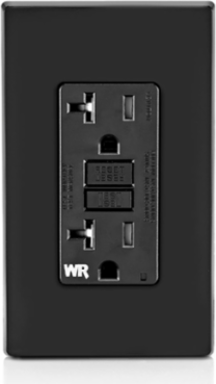

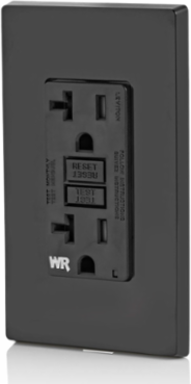

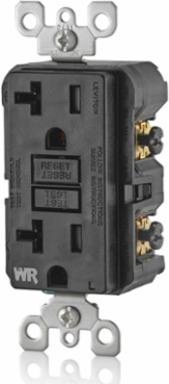

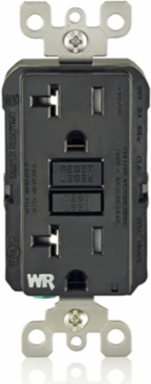

Leviton GFWT2-E 20 Amp Weather-Resistant GFCI Outlet, Tamper-Resistant, Self-Test, Black
- MPN: GFWT2-E
- UPC: 078477709207
- PPN: LEV-GFWT2-E
CAD
$57.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather & Tamper-Resistant GFCI, Monochromatic, Residential/Commercial applications, back and side wired, wallplate/faceplate sold separately - Black
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Applicable Standards and Certifications
- UL|CSA|CSA C22.2 No. 144|CSA C22.2 No. 42|Fed Spec WC-596|UL 943|UL 498
NEMAWD-1 and WD-6
Material Specifications
- Body
- Thermoplastic
- Grounding Screw
- #8 Stainless Steel
- Mounting Strap
- Stainless Steel
- TR Shutter
- Thermoplastic
- Terminal Screws
- #8 Stainless Steel
FaceThermoplastic
Line ContactsBrass
Self-Grounding ClipNo
Terminal ClampsBrass
Mechanical Specifications
- Product ID
- Ratings are marked on device
- Torque Range
- 14-18 lbs.
TerminationBack and Side Wire
Wire Accomodation#10 - #14 AWG Copper, #10 - #12 Copper Clad
Product Features
- Brand
- SmartlockPro
- Device Type
- Duplex Receptacle/Outlet
- Grade
- Residential/Commercial Specification Grade
- Product Type
- GFCI
ColorBlack
Feature(s)Indicator Light, Self-Test, Tamper Resistant, Weather Resistant
NEMA Configuration5-20R
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Temperature
- Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Grounding
- Pole(s)
- 2
- Short Circuit Current Rating
- 10 kA
- Trip Level
- Class A
- Wire(s)
- 3
Dielectric Voltage1250 VAC
Horsepower Rating1 hp
Power Supply Input and Frequency125V, 60Hz
Temperature RiseMax 30°C
Voltage125 VAC
