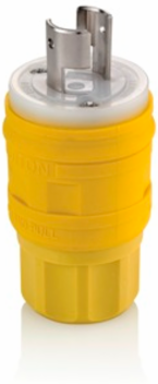

Leviton 26W07 Wetguard Watertight Locking Plug, 20 Amp, 250 Volt, IP69K Rated, NEMA L2-20P
- MPN: 26W07
- UPC: 078477474273
- PPN: LEV-26W07
CAD
$34.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

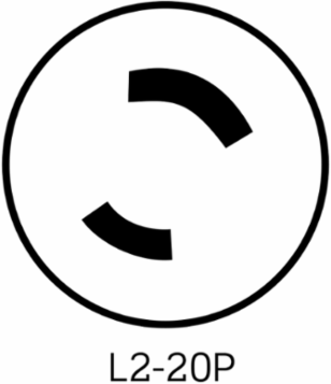

20 Amp, 250 Volt, NEMA L2-20P, 2P, 2W, Plug, Locking Blade, Industrial Grade, Non-Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Stainless Steel, Non-Magnetic
- Body Interior
- Nylon
- Bushing
- Santoprene TPV
- Terminal Screws
- Electroless Nickel-coated Brass
Blades/ContactsElectroless Nickel-coated Brass
Body MaterialSantoprene TPV
Compression Nut, Strain ReliefNylon
Wire ModuleNylon
Mechanical Specifications
- Cord Grip Range (in)
- .375-.875
- Terminal Accom.
- #16 to #10
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Wetguard
- Device Type
- Locking Plug
ColorYellow
Environmental Specifications
- Environment
- Wet
- IP Rating
- IP66, IP67, IP69K
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire2
