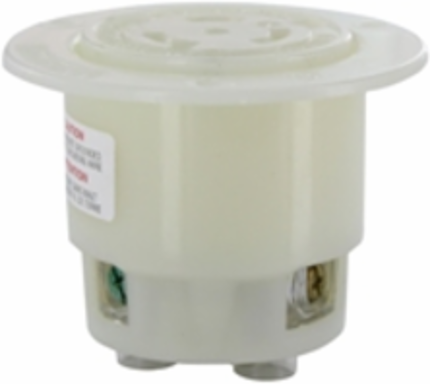

Leviton 2326 20 Amp, 250 Volt, Flanged Outlet Locking Receptacle, Industrial Grade

20 Amp, 250 Volt, Flanged Outlet Locking Receptacle, Industrial Grade
20 Amp, 250 Volt, Flanged Outlet Locking Receptacle, Industrial Grade
  • MPN: 2326
  • UPC: 078477801185
  • PPN: LEV-2326

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$75.36/ EA

Description

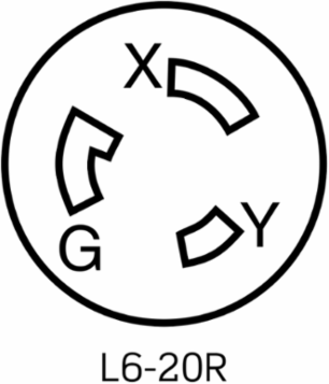

20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flanged Outlet Locking Receptacle, Industrial Grade, Grounding - WHITE

Features

  • Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL Fed Spec WC-596
File E13399
Warranty
Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399

Material Specifications

Body Material
Nylon
Face Material
Nylon
Line Contacts
Brass .035 Thick
Terminal Screws
Brass 10-32
ColorWhite
Grounding ScrewBrass 8-32
Strap MaterialThermoplastic Nylon

Mechanical Specifications

Product ID
Ratings and NEMA I.D. permanently marked on device
Terminal Accom.
18-10 AWG
Termination
Back
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
20 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3

AC Horsepower Ratings

Horsepower Rating
2 HP

Downloads
