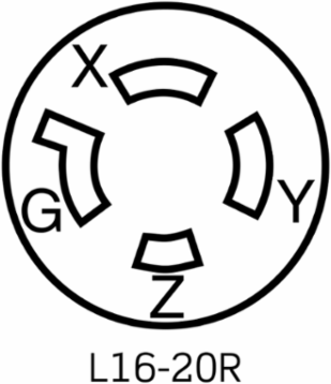

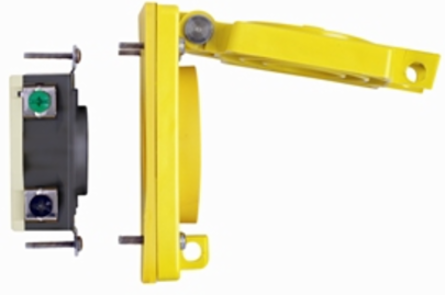

Leviton 67W76 Wetguard Watertight Locking Receptacle 20 Amp 480 Volt NEMA L16-20R
- MPN: 67W76
- UPC: 078477075104
- PPN: LEV-67W76
CAD
$180.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 480 Volt 3-Phase, NEMA L16-20R, 3P, 4W, Flip Lid with Receptacle, Single Locking Flush Mounting Receptacle, Corrosion Resistant, Grounding, Wetguard Flip Lid, Back & Side Wired, Nickel-Plated Brass Strap, - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Material Specifications
| Base Material | Nylon |
|---|---|
| Grounding Screw | Nickel-Plated Brass 8-32 |
| Terminal Screws | Nickel-Plated Brass 10-32 |
| Face Material | Nylon |
|---|---|
| Line Contacts | Nickel-Plated Brass .040 Thick |
| Yoke | Nickel-Plated Brass .050 Thick |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Terminal Accom. | 14-8 AWG |
|---|
Product Features
| Amperage | 20 A |
|---|---|
| Color | Yellow |
| Grounding | Grounding |
| Standards and Certifications | UL/CSA |
| Termination | Back |
| Warranty | Limited Lifetime Warranty |
| Brand | Wetguard |
|---|---|
| Device Type | Locking Outlet |
| Pole | 3 |
| Strap Material | Nickel-Plated Brass |
| Voltage | 480 VAC |
| Wire | 4 |
Environmental Specifications
| Environment | Wet |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-0 per UL 94 |
|---|
Electrical Specifications
| Current Limiting | Full Rated Current |
|---|---|
| Phase | 3-Phase |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
AC Horsepower Ratings
| At Rated Voltage | 5 HP |
|---|
