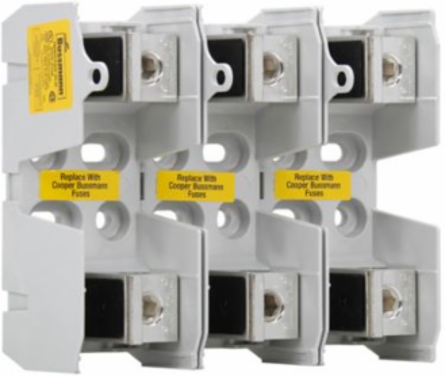

Edison JM60200-3CR Eaton Bussmann series JM modular fuse block, 600V, 110-200A, Knife Blade End X Knife Blade End, Three-pole

Description

Features

• This three-pole open-style fuse block is engineered specifically for 600V Class J fuses, providing a high-density footprint for industrial control panels. The modular "click-together" design allows for flexible installation, ensuring you can scale your motor control centers or branch circuit protection without wasting valuable enclosure real-world estate.
• Rated for a continuous 200 Amps, this block serves as the robust foundation for high-current applications, including large industrial motors, heaters, and commercial HVAC systems. By utilizing a triple-pole configuration, it streamlines the protection of three-phase power systems, reducing wiring complexity while maintaining absolute circuit integrity for your most critical assets.
• Equipped with rugged "CR" style box lug terminals, this unit is designed to securely terminate a wide range of large-diameter copper or aluminum conductors (up to 250 kcmil). These high-pressure connections minimize contact resistance and heat buildup, preventing the terminal degradation and voltage drops that often lead to premature equipment failure in high-load environments.
• When paired with the appropriate Class J fuses, this block boasts a 200,000 Amp Short Circuit Current Rating (SCCR), making it fully compliant with NEC Article 110.10 for high-fault current environments. This UL Listed and CSA Certified component ensures your panels pass rigid inspections and provide maximum arc-flash protection for onsite electrical maintenance teams.
