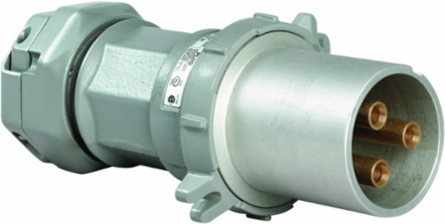

Killark VP204612 200 Amp 3 Pole 4 Wire Pin & Sleeve Plug Assembly, 600 VAC, 12.62 Inch x 6.38 Inch Dimensions
- MPN: VP204612
- UPC: 783936833064
- PPN: HBL-VP204612
CAD
$2191.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
200A 3 Pole 4 Wire Plug Assembly
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 6.38 in
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 200 A
- Finish Type
- Baked Powder Epoxy/Polyester Finish
- Number Of Wires
- 3
- Type
- Pin & Sleeve
- Description - Invoice
- 200A 3W4P PLUG ASSY SU37
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Grommet Range
- 1.0-2.5
- Series
- VersaMate Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A104
Dimensions12.62 in x 6.38 in x 6.38 in
Length12.62 in
Width6.38 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle II
Class CodeD35
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD35D260
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936833064
